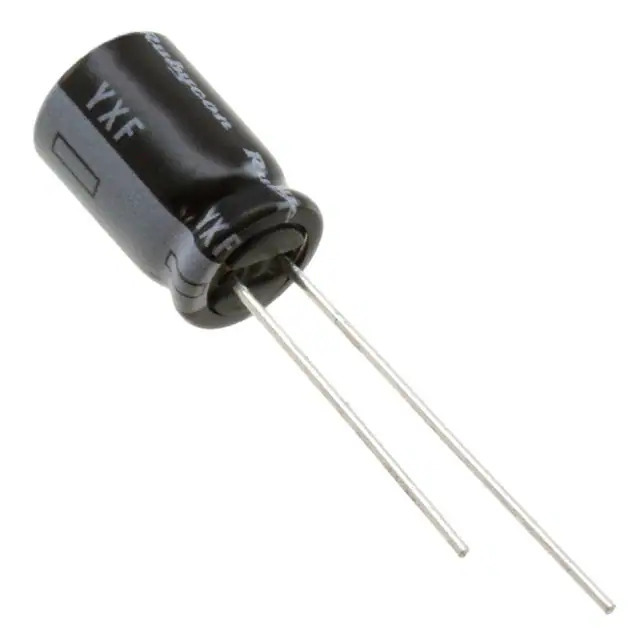

25YXF220MEFCT78X11.5 Rubycon
Same model may have multiple batches, images only for reference.

25YXF220MEFCT78X11.5

Part No 25YXF220MEFCT78X11.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 25V RADIAL / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 250 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357627-25YXF220MEFCT78X11.5
Ultra Librarian 3D Model Ultra Librarian 25YXF220MEFCT78X11.5 CAD Model

Description

The 25YXF220MEFCT78X11.5 is a 220μF, 25V aluminum electrolytic capacitor from Rubycon's YXF series.

  • Series: YXF
  • Capacitance: 220μF
  • Voltage: 25V
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (120 Hz): 280 mA
  • Ripple Current (100 kHz): 400 mA
  • Lead Spacing: 0.138" (3.50mm)
  • Size/Dimension: 0.315" (8.00mm) in diameter
  • Height: 0.512" (13.00mm)
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Polarization: Polarized
  • Lifetime: 7,000 hours @ 105°C
  • Status: Active
