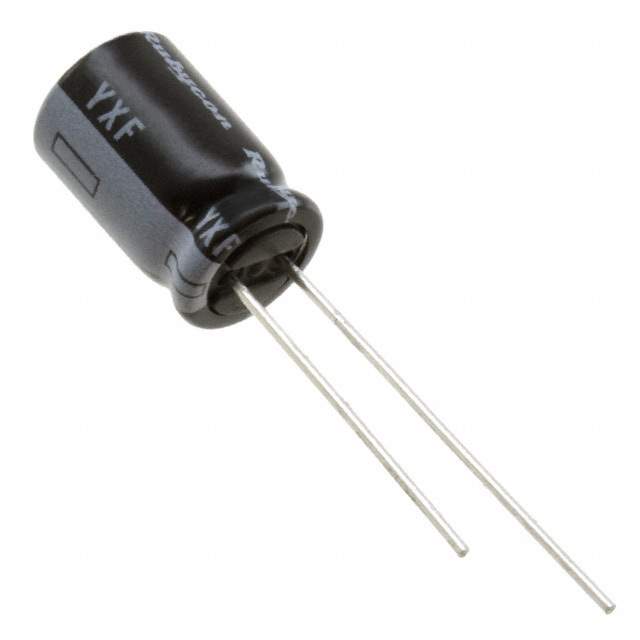

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 250 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 25YXF220MEFC8X11.5-ND,1189-1865,25YXF220MEFC8X115
Standard Package 2,000
Win Source Part Number 1330265-25YXF220MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 25YXF220MEFC8X11.5 CAD Model

Description

The Rubycon 1330265-25YXF220MEFC8X11.5 is an aluminum electrolytic capacitor with a capacitance of 220 µF and a voltage rating of 25 V.

  • Manufacturer: Rubycon
  • Capacitance: 220 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Impedance: 250 mOhms
  • Ripple Current (120 Hz): 280 mA
  • Ripple Current (100 kHz): 400 mA
  • Lifetime: 7000 hours @ 105°C
  • Polarized: Yes
  • Mounting Type: Through Hole
  • Case/Package: Radial, Can
  • Application: General Purpose
  • Standard Package: 2,000
  • Diameter: 0.315 inches (8.00mm)
  • Height: 0.512 inches (13.00mm)
  • ESR: Not Specified
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.22.0020
