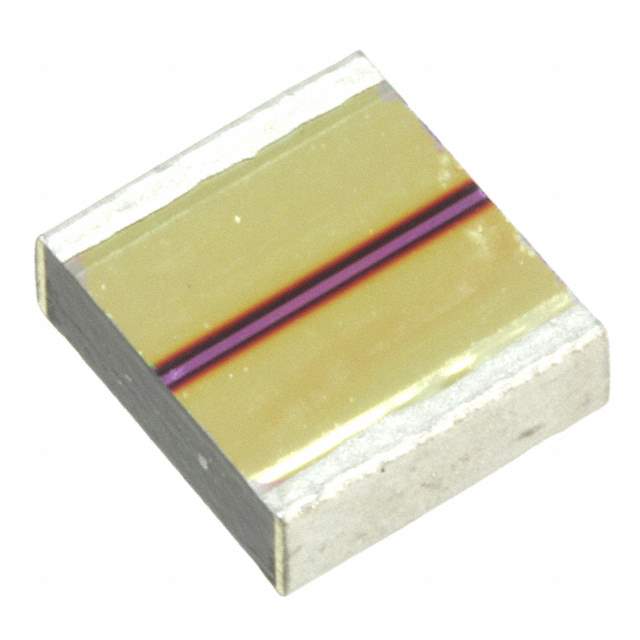

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series PMLCAP, ST
Packaging Reel package
Capacitance 10μF
Tolerance ±20%
Voltage Rating - DC 25V
Dielectric Material Acrylic, Metallized
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2220 (5750 Metric)
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Applications DC Link, DC Filtering
Win Source Part Number 772258-25ST106MD15750
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Family Name ST
Introduction Date September 18, 2012
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 25ST106MD15750 CAD Model

Description

The 772258-25ST106MD15750 is a capacitor manufactured by Rubycon.

  • Series: PMLCAP, ST
  • Capacitance: 10μF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • Applications: DC Link, DC Filtering
  • Package: 2220 (5750 Metric)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -55°C to 125°C
  • Height: 0.071" (1.80mm)
  • Popularity: Medium
  • Package Quantity: 200
