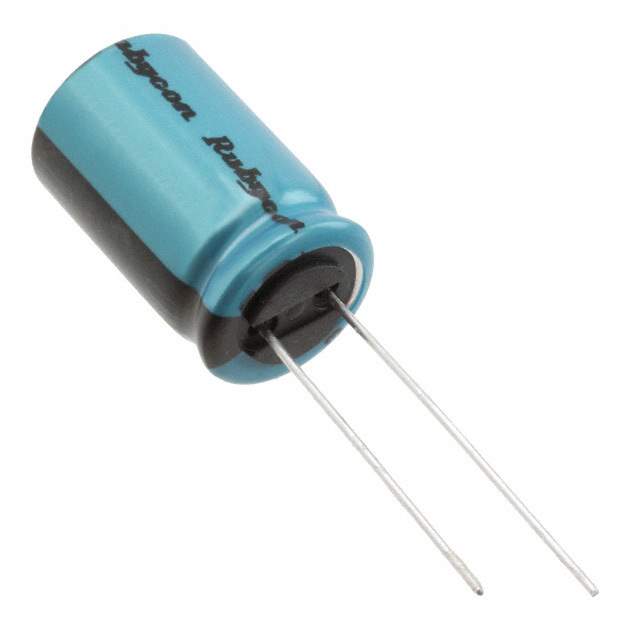

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series RX30
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 4000 Hrs @ 130°C
Temperature Range - Operating -40°C ~ 130°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 825 mA @ 120 Hz
Ripple Current @ High Frequency 1.1 A @ 100 kHz
Impedance 55 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1133547-25RX301000M12.5X20
Ultra Librarian 3D Model Ultra Librarian 25RX301000M12.5X20 CAD Model

Description

The 25RX301000M12.5X20 is a RX30 series aluminum electrolytic capacitor from Rubycon. It has a capacitance of 1000 µF and a voltage-rated of 25 V. in the open market, it is important to ensure that you purchase genuine products.

  • Capacitance: 1000 µF
  • Voltage Rated: 25 V
  • Mounting Type: Through Hole
  • Package/Case: Radial, Can
  • Suitable for: Automotive Electronics, Power Supplies, and Industrial Equipment
