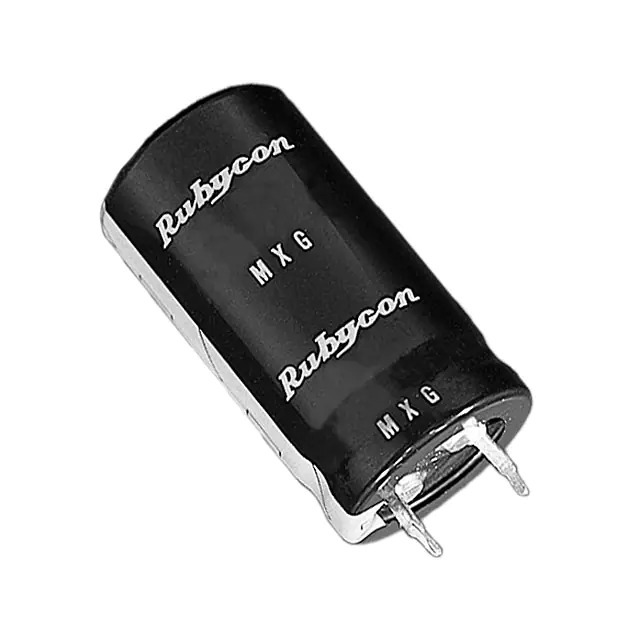

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXG
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.2 A @ 120 Hz
Ripple Current @ High Frequency 3.3 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1377426-250MXG680MEFCSN25X40
Ultra Librarian 3D Model Ultra Librarian 250MXG680MEFCSN25X40 CAD Model

Description

The Rubycon MXG series aluminum electrolytic capacitor is a reliable component designed for general-purpose applications from Rubycon.

  • Capacitance: 680 µF
  • Voltage Rating: 250 V
  • Temperature Range: -25°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 2.2 A @ 120 Hz
  • Ripple Current (High Frequency): 3.3 A @ 10 kHz
  • Package: Radial, Can - Snap-In
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Size: 0.984" Dia (25.00mm)
  • Lifetime: 3000 hours @ 105°C
  • Product Status: Active
