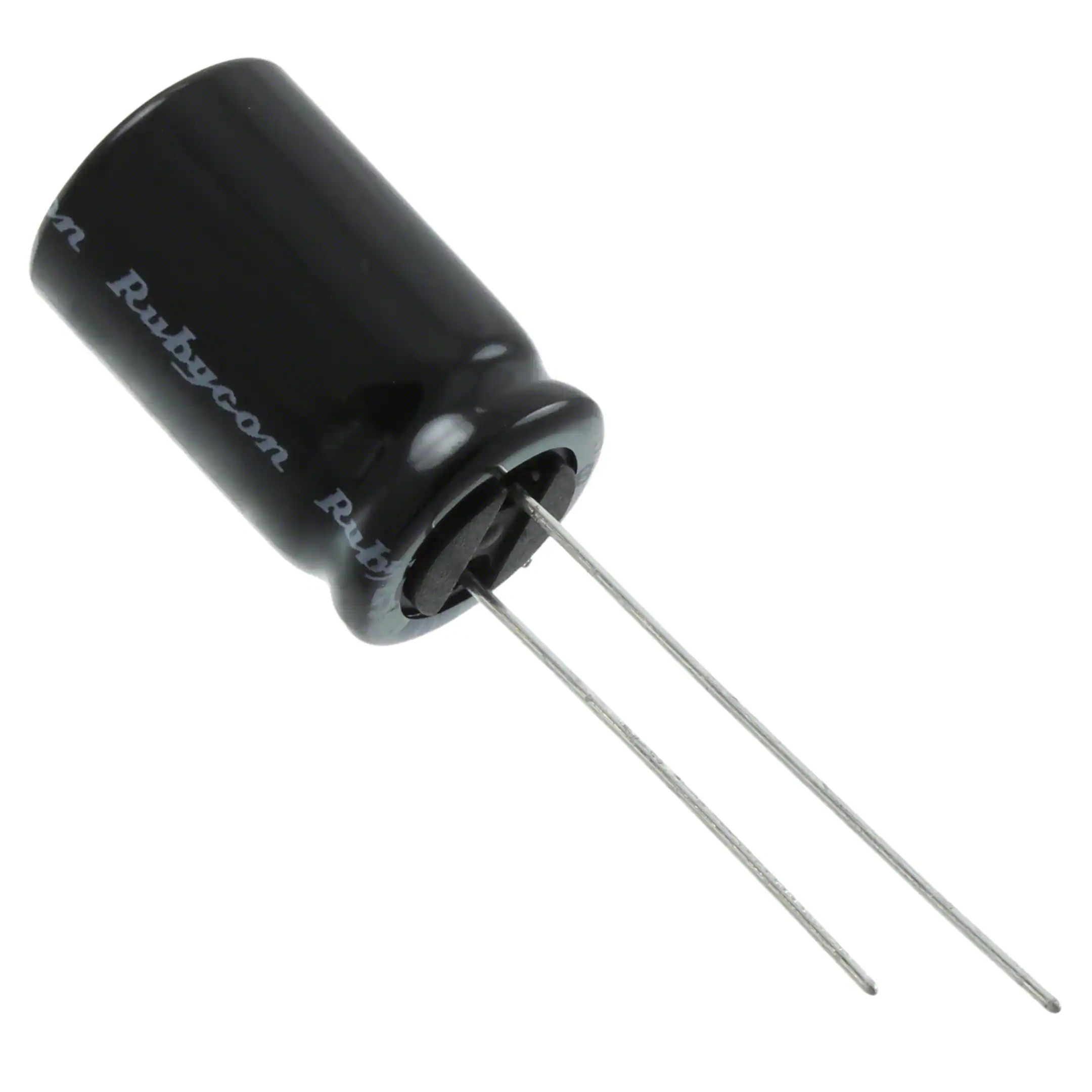

16ZLH2200MEFC12.5X20 Rubycon
Same model may have multiple batches, images only for reference.

16ZLH2200MEFC12.5X20

Part No 16ZLH2200MEFC12.5X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 16V RADIAL / 2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.736 A @ 120 Hz
Ripple Current @ High Frequency 2.48 A @ 100 kHz
Impedance 17 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357730-16ZLH2200MEFC12.5X20
Ultra Librarian 3D Model Ultra Librarian 16ZLH2200MEFC12.5X20 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Product: Aluminum Electrolytic Capacitor
  • Manufacturer: Rubycon
  • Series: ZLH
  • Application: General Purpose
  • Capacitance: 2200 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.736 A @ 120 Hz
  • Ripple Current (High Frequency): 2.48 A @ 100 kHz
  • Size: 0.492 inches (12.50 mm) Dia
  • Height: 0.866 inches (22.00 mm)
  • Mounting Type: Through Hole
  • Lifetime: 10,000 hours @ 105°C
  • Packaging: Bulk
