16YXJ330M6.3X11 Rubycon

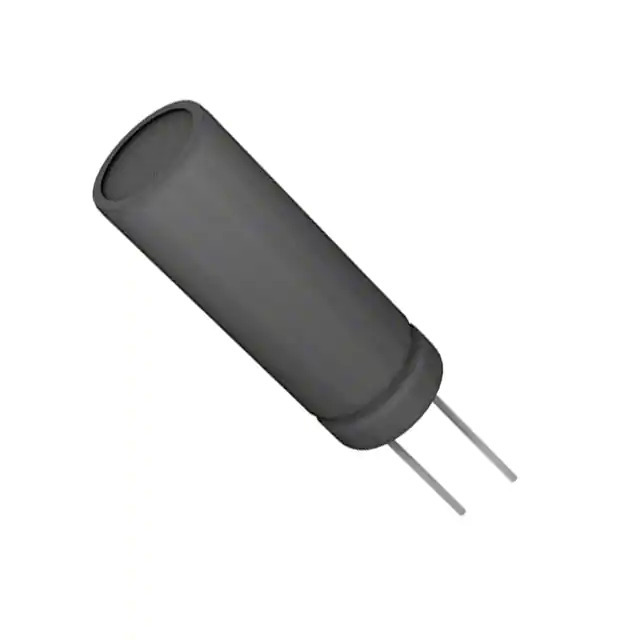

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357858-16YXJ330M6.3X11
Ultra Librarian 3D Model Ultra Librarian 16YXJ330M6.3X11 CAD Model

Description

The Rubycon 1357858-16YXJ330M6.3X11 is a high-quality aluminum electrolytic capacitor with a capacitance of 330 µF and a voltage rating of 16 V.

  • Capacitance: 330 µF
  • Voltage Rating: 16 V
  • Temperature Range: -40°C to 105°C
  • Diameter: 6.30mm
  • Height: 12.50mm
  • Tolerance: ±20%
  • Ripple Current: 280 mA @ 120 Hz and 400 mA @ 100 kHz
  • Lifetime: 7000 hours @ a temperature of 105°C
  • Mounting Type: Through-hole
  • Package: Radial, can
  • Status: Active
  • Series: YXJ
  • Manufacturer: Rubycon
  • REACH Status: Unaffected
  • ECCN: EAR99
