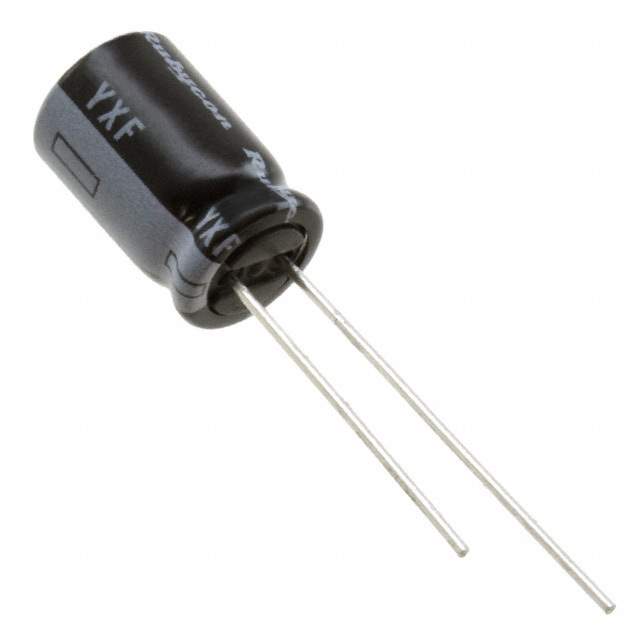

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 250 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 16YXF220MEFC8X11.5-ND,1189-2190
Standard Package 2,000
Win Source Part Number 1330253-16YXF220MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 16YXF220MEFC8X11.5 CAD Model

Description

The 16YXF220MEFC8X11.5 aluminum electrolytic capacitor is a high-quality product from Rubycon.

  • Capacitance: 220µF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Impedance: 250 mOhms
  • Ripple Current @ Low Frequency: 280mA @ 120Hz
  • Ripple Current @ High Frequency: 400mA @ 100kHz
  • Lifetime @ Temp.: 7000 hours @ 105°C
  • Polarization: Polar
  • Size / Dimension: 0.315 inches Dia (8.00mm)
  • Height - Seated (Max): 0.512 inches (13.00mm)
  • Mounting Type: Through Hole
  • Application: General Purpose
