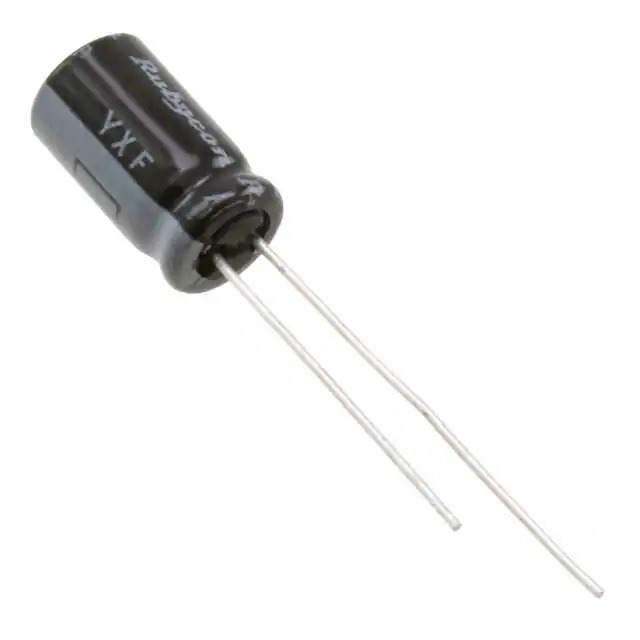

16YXF100MEFCT16.3X11 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 175 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 400 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358252-16YXF100MEFCT16.3X11
Ultra Librarian 3D Model Ultra Librarian 16YXF100MEFCT16.3X11 CAD Model

Description

The Rubycon 1358252-16YXF100MEFCT16.3X11 is a general-purpose aluminum electrolytic capacitor.

  • Capacitance: 100 µF
  • Voltage - Rated: 16 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 175 mA @ 120 Hz
  • Ripple Current @ High Frequency: 250 mA @ 100 kHz
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Series: YXF
  • Lead Spacing: 0.098" (2.50mm)
  • Operating Temperature: -40°C ~ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
