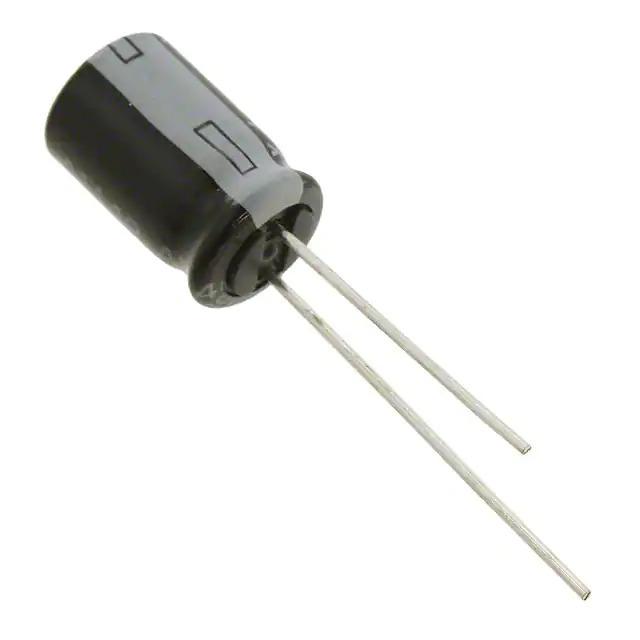

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Tape & Box (TB)
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 375 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357675-16PX470MEFCTA8X11.5
Ultra Librarian 3D Model Ultra Librarian 16PX470MEFCTA8X11.5 CAD Model

Description

The Rubycon 1357675-16PX470MEFCTA8X11.5 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 470 µF
  • Voltage Rating: 16 V
  • Operating Temperature: -55°C to 105°C
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 375 mA @ 120 Hz
  • Ripple Current @ High Frequency: 450 mA @ 10 kHz
  • Lifetime @ Temp.: 1,000 Hours @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 5.00mm
  • Size / Dimension: 8.00mm Diameter x 13.00mm Height
  • Series: PX
