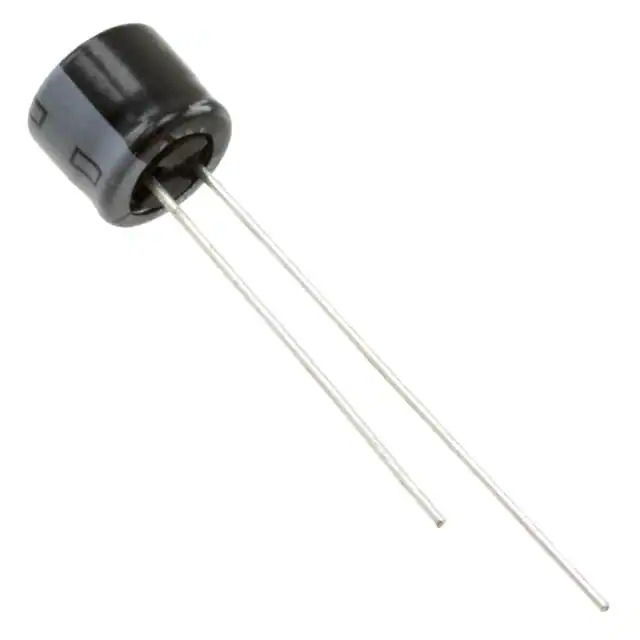

Same model may have multiple batches, images only for reference.

16MH5100MEFCT56.3X5

Name: 16MH5100MEFCT56.3X5
Brand: Rubycon
SKU: 1357662
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	16MH5100MEFCT56.3X5
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 16V RADIAL / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	MH5
Package	Tape & Box (TB)
Product Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	62 mA @ 120 Hz
Ripple Current @ High Frequency	74.4 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357662-16MH5100MEFCT56.3X5
Ultra Librarian 3D Model	Ultra Librarian 16MH5100MEFCT56.3X5 CAD Model

Description

The Rubycon MH5 series aluminum electrolytic capacitor is a reliable component for various electronic applications.

Manufacturer: Rubycon
Series: MH5
Capacitance: 100 µF
Voltage Rating: 16 V
Temperature Range: -40°C to 105°C
Mounting Type: Through-Hole
Package: Radial, Can
Lead Spacing: 0.098" (2.50mm)
Size: 0.248" Dia (6.30mm)
Lifetime: 1000 hours @ 105°C
Ripple Current (Low Frequency): 62 mA @ 120 Hz
Ripple Current (High Frequency): 74.4 mA @ 10 kHz
Product Status: Active
