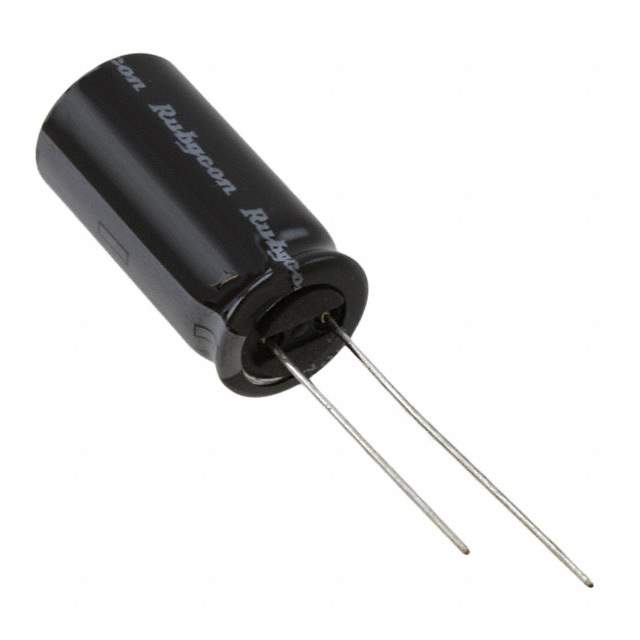

Same model may have multiple batches, images only for reference.

100ZLH220MEFC12.5X25

Name: 100ZLH220MEFC12.5X25
Brand: Rubycon
SKU: 967873
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	100ZLH220MEFC12.5X25
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 100V RADIAL / 220 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	ZLH
Package	Bulk
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	810 mA @ 120 Hz
Ripple Current @ High Frequency	1.62 A @ 100 kHz
Impedance	60 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	100ZLH220MEFC12.5X25-ND,1189-2942
Standard Package	1,000
Win Source Part Number	967873-100ZLH220MEFC12.5X25
Ultra Librarian 3D Model	Ultra Librarian 100ZLH220MEFC12.5X25 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is designed for general purpose applications.

Capacitance: 220 µF
Voltage Rating: 100 V
Impedance: 60 mOhms
Lifetime: 10000 hours @ a temperature of 105°C
Polarization: Polarized
Mounting Style: Through hole
Package/Case Type: Radial, can
Temperature Range: -40°C to 105°C
