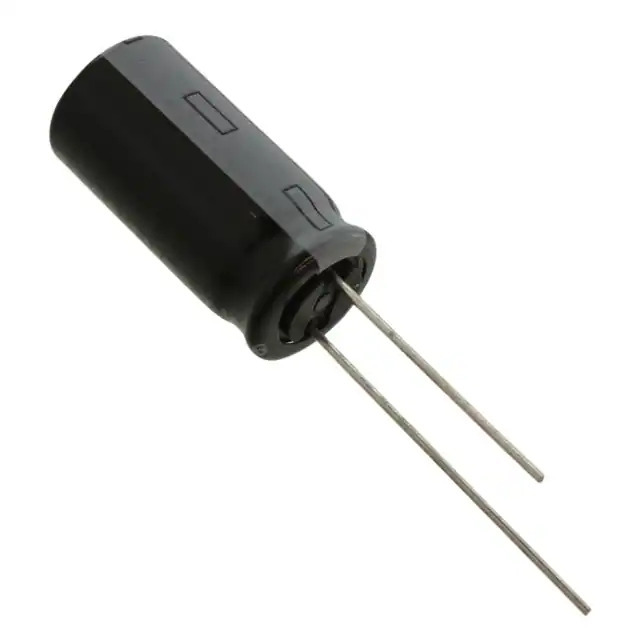

100ZLH100MEFC10X20 Rubycon
Same model may have multiple batches, images only for reference.

100ZLH100MEFC10X20

Part No 100ZLH100MEFC10X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 100V RADIAL / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 520 mA @ 120 Hz
Ripple Current @ High Frequency 1.04 A @ 100 kHz
Impedance 120 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357672-100ZLH100MEFC10X20
Ultra Librarian 3D Model Ultra Librarian 100ZLH100MEFC10X20 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a reliable component suitable for various electronic applications.

  • Capacitance: 100 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 520 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.04 A @ 100 kHz
  • Size: 0.394" diameter, 0.866" height
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Applications: General-purpose
  • Lifetime: 10,000 hours @ 105°C
  • Manufacturer: Rubycon
