Same model may have multiple batches, images only for reference.

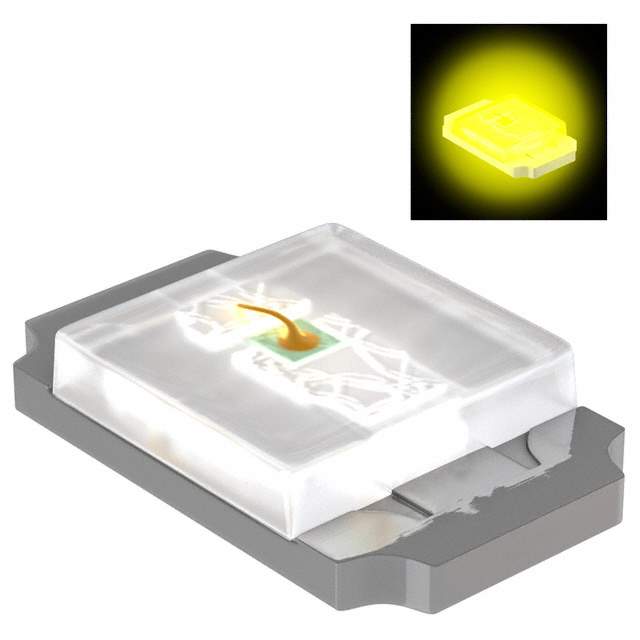

SML-P12YTT86R Real Image
Same model may have multiple batches, images only for reference.

SML-P12YTT86R

Part No SML-P12YTT86R
Manufacturer Rohm Semiconductor
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Yellow 2-Pin Chip 0402(1006Metric) T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0402
Case Code (Imperial) 0402
Case / Package 1006
Color Yellow
Dominant Wavelength 590 nm
Forward Current 20 mA
Forward Voltage 2.1 V
Height 250 µm
Lead Free Yes
Length 1 mm
Lens Color Colorless
Lens Style Colorless, Diffused, Square
Lens Transparency Clear
Luminous Intensity 100 mcd
Mount Surface Mount
Number of LEDs 1
Number of Pins 2
Packaging Tape & Reel (TR)
REACH SVHC Unknown
RoHS Compliant
Schedule B 8541402000
Test Current 20 mA
Wavelength 590 nm
Width 600 µm
Win Source Part Number 1094466-SML-P12YTT86R
Categories Optics - LEDs - Light Pipes
Manufacturer Rohm Semiconductor
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SML-P12YTT86R CAD Model

Description

The Rohm Semiconductor SML-P12YTT86R is a yellow LED with a luminous intensity of 100 mcd and a forward voltage of 2.1 V.

  • LED Color: Yellow
  • Luminous Intensity: 100 mcd
  • Forward Voltage: 2.1 V
  • Forward Current: 20 mA
  • Wavelength: 590 nm
  • Mounting Type: Surface Mount Device
  • Package: 0402
  • RoHS Compliant: Yes
  • Lead-Free: Yes
