Same model may have multiple batches, images only for reference.

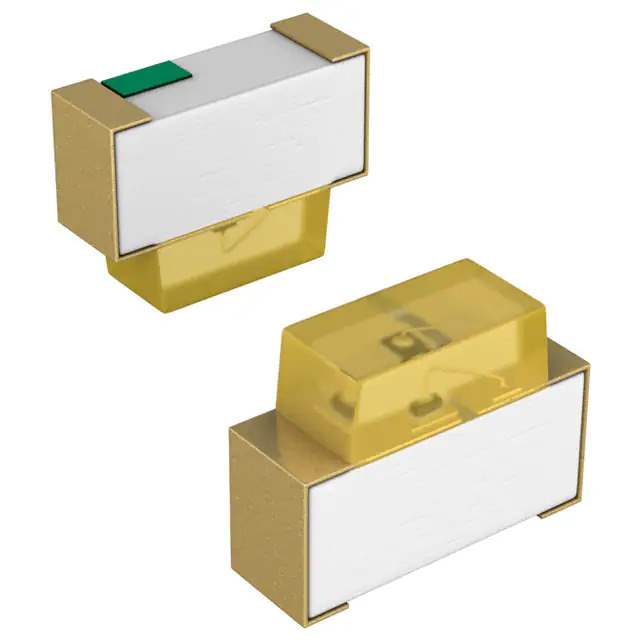

SML-A12UTT86 Real Image
Same model may have multiple batches, images only for reference.

SML-A12UTT86

Part No SML-A12UTT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED CLEAR 1611 SMD R/A
Datasheet
SML-A12UTT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series EXCELED™
Package Tape & Reel
Product Status Not For New Designs
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 100mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.55mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 624nm
Package / Case 2-SMD, No Lead
Supplier Device Package 1611(0605)
Size / Dimension 1.60mm L x 1.15mm W
Height (Max) 0.65mm
Base Product Number SML-A12
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 741852-SML-A12UTT86
Ultra Librarian 3D Model Ultra Librarian SML-A12UTT86 CAD Model

Description

The Rohm Semiconductor 741852-SML-A12UTT86 is a discrete LED indication component from the EXCELED™ series.

  • Series: EXCELED™
  • Type: LED
  • Applications: optoelectronics
  • Color: red
  • Package: Tape & Reel
  • Package Size: 3,000 pcs
  • Size/Dimension: 1.60mm L x 1.15mm W
  • Lens Transparency: clear
  • Viewing Angle: not specified
  • Millicandela Rating: 100mcd
  • Voltage Forward (Vf): 2V (typical) @ 20mA
  • Test Current: 20mA
  • Manufacturer: Rohm Semiconductor
