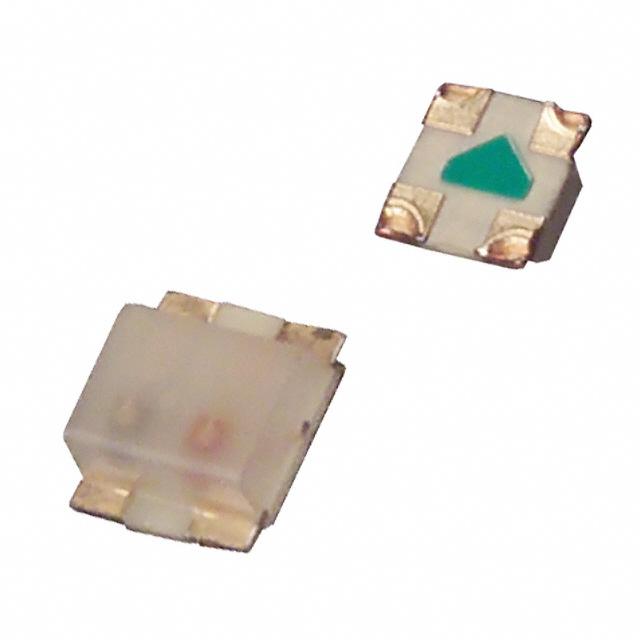

Same model may have multiple batches, images only for reference.
SML-521MYWT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-521MYWT86

Part No SML-521MYWT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN/YLW DIFFUSED 0605 SMD
Datasheet
SML-521MYWT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Color Green, Yellow
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 16mcd Green, 63mcd Yellow
Lens Style/Size Rectangle with Flat Top, 1.10mm x 1.30mm
Forward Voltage 2.2V Green, 1.9V Yellow
Current - Test 20mA Green, 20mA Yellow
Mounting SMD (SMT)
Wavelength - Peak 570nm Green, 590nm Yellow
Case / Package 1315 (0605)
Height (Max) 0.70mm
Win Source Part Number 029399-SML-521MYWT86
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SML-521MYWT86 CAD Model

Description

The Rohm Semiconductor SML-521MYWT86 is a surface-mount LED with a rectangular flat top lens style and size of 1.10mm x 1.30mm.

  • Colors: Green and yellow colors
  • Lens Transparency: Diffused white lens transparency
  • Forward Voltage: 2.2V and 1.9V for green and yellow, respectively
  • Millicandela Rating: 16mcd and 63mcd for green and yellow
  • Configuration: Independent
  • Current Test: 20mA for both colors
  • Peak Wavelength: 570nm and 590nm for green and yellow, respectively
  • Application: Commonly used in optoelectronics applications
