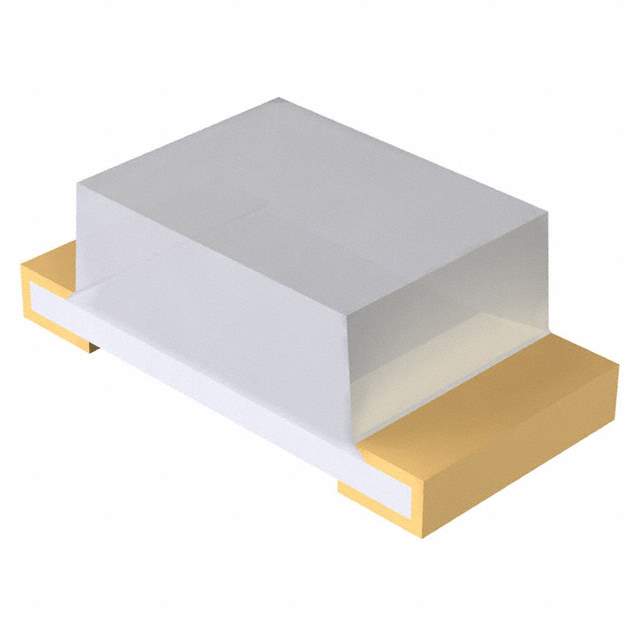

SML-511UWT86 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Color Red
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd
Lens Style/Size Rectangle with Flat Top, 1.20mm x 0.80mm
Forward Voltage 2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 620nm
Case / Package 0603 (1608 Metric)
Height (Max) 0.65mm
Win Source Part Number 047086-SML-511UWT86
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML-511UWT86 CAD Model

Description

The Rohm Semiconductor 047086-SML-511UWT86 is a red SMD LED with a diffused white lens.

  • Forward Voltage: 2V
  • Millicandela Rating: 40mcd
  • Wavelength-Dominant: 620nm
  • Lens: Rectangular lens with a flat top and is 1.20mm x 0.80mm in size
  • Package: In a reel
  • Status: Not for new designs
