Same model may have multiple batches, images only for reference.

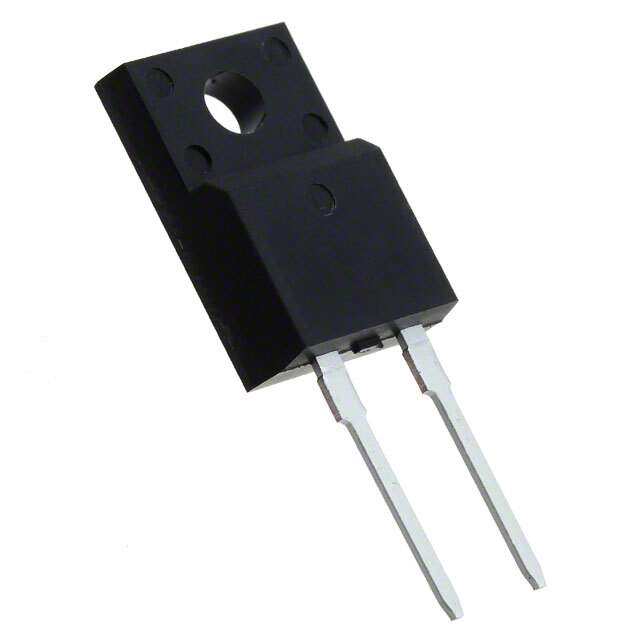

SCS320AMC Real Image
Same model may have multiple batches, images only for reference.

SCS320AMC

Part No SCS320AMC
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODES SILICON CARBIDE / Diode Silicon Carbide Schottky 650 V 20A (DC) Through Hole TO-220FM
Datasheet
SCS320AMC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Rohm Semiconductor
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 20A (DC)
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 20 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 100 µA @ 650 V
Capacitance @ Vr, F 1000pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220FM
Operating Temperature - Junction 175°C (Max)
Base Product Number SCS320
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 50
Win Source Part Number 1091910-SCS320AMC
Ultra Librarian 3D Model Ultra Librarian SCS320AMC CAD Model

Description

The Rohm Semiconductor SCS320AMC is a silicon carbide Schottky diode with a voltage rating of 650V DC reverse and a current rating of 20A average rectified.

  • Voltage Rating: 650V DC Reverse
  • Current Rating: 20A Average Rectified
  • Recovery Time: 0ns
  • Forward Voltage: 1.5V @ 20A
  • Supply & Demand Status: Limited
  • Win Source Part Number: 1091910-SCS320AMC
