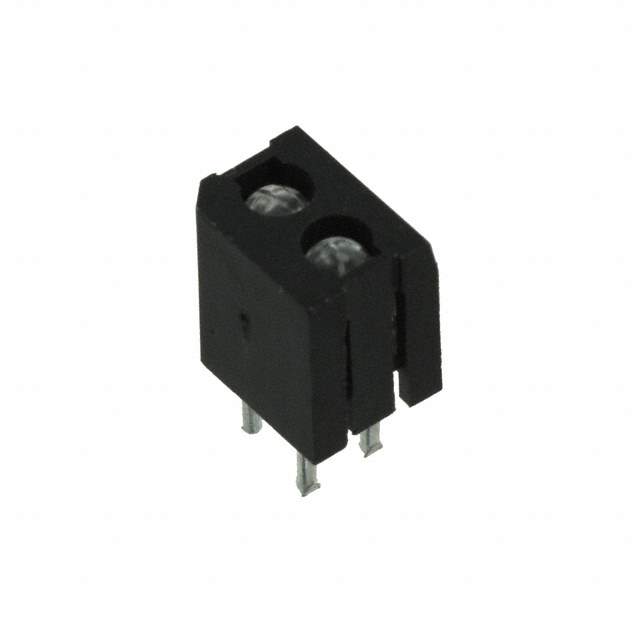

RPR-220UC30N Real Image
Same model may have multiple batches, images only for reference.

RPR-220UC30N

Part No RPR-220UC30N
Manufacturer Rohm Semiconductor
Catalog Optical Sensors - Reflective - Analog Output
Description Red light source high output reflective photosensor (photoreflector)
Datasheet
RPR-220UC30N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Rohm Semiconductor
Packaging Bulk
Sensing Distance 0.236" (6mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Maximum) 30V
Current - Collector (Ic) (Maximum) 30mA
Current - DC Forward (If) (Maximum) 30mA
Output Type Phototransistor
Response Time 10μs
Mounting Style Through Hole
Package 4-DIP Module
Operating Temperature Range -25°C ~ 85°C
Win Source Part Number 1243695-RPR-220UC30N
Manufacturer Homepage www.rohm.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RPR-220UC30N CAD Model

Description

The Rohm Semiconductor RPR-220UC30N is a reflective phototransistor sensor with a sensing distance of 0.236 inches (6mm).

  • Sensing Distance: 0.236 inches (6mm)
  • Mounting Style: Through-hole
  • Operating Temperature Range: -25°C to 85°C
  • Package: 4-DIP module
  • Response Time: 10μs
  • Current - DC Forward (If) (Maximum): 30mA
  • Current - Collector (Ic) (Maximum): 30mA
  • Supply and Demand Status: Currently balanced
  • Alternative Parts: OPB706A, OPB706B, and OPB706C
