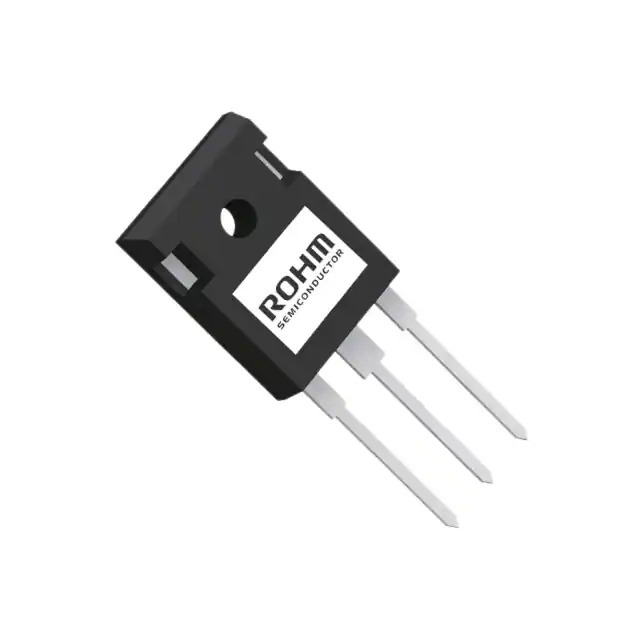

RGTH60TS65DGC13

Name: RGTH60TS65DGC13
Brand: Rohm Semiconductor
SKU: 1376616
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RGTH60TS65DGC13
Manufacturer	Rohm Semiconductor
Catalog	IGBTs - Single
Description	IGBT TRENCH FIELD 650V 58A TO247
Datasheet	RGTH60TS65DGC13 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	Rohm Semiconductor
Series	-
Package	Tube
Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	58 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 30A
Power - Max	194 W
Switching Energy	-
Input Type	Standard
Gate Charge	58 nC
Td (on/off) @ 25°C	27ns/105ns
Test Condition	400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)	58 ns
Temperature Range - Operating	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247
Base Product Number	RGTH60
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1376616-RGTH60TS65DGC13
Ultra Librarian 3D Model	Ultra Librarian RGTH60TS65DGC13 CAD Model

Description

The 1376616-RGTH60TS65DGC13 is a single IGBT (Insulated Gate Bipolar Transistor) from Rohm Semiconductor.

Maximum Collector Current: 58A
Maximum Collector-Emitter Breakdown Voltage: 650V
On-State Voltage: 2.1V @ a gate-emitter voltage of 15V and a collector current of 30A
Reverse Recovery Time: 58ns
Gate Charge: 58nC
Maximum Power Dissipation: 194W
Package: TO-247-3
Mounting Type: Through-Hole
