RGS80TSX2HRC11

Part No RGS80TSX2HRC11
Manufacturer Rohm Semiconductor
Catalog IGBTs - Single

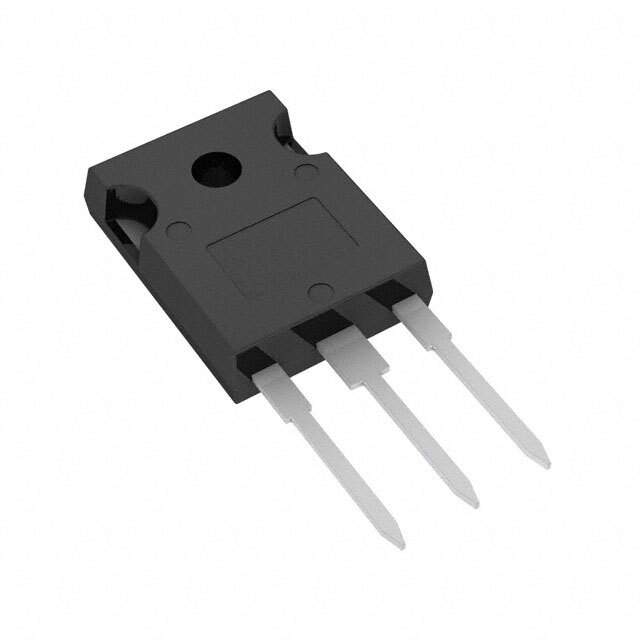

Description 1200V 40A FIELD STOP TRENCH IGBT / IGBT Trench Field Stop 1200 V 80 A 555 W Through Hole TO-247N
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Manufacturer Rohm Semiconductor
Packaging Tube
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 80 A
Current - Collector Pulsed (Icm) 120 A
Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 40A
Power - Max 555 W
Switching Energy 3mJ (on), 3.1mJ (off)
Input Type Standard
Gate Charge 104 nC
Td (on/off) @ 25°C 49ns/199ns
Test Condition 600V, 40A, 10Ohm, 15V
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Through Hole
Case / Package TO-247-3
Supplier Device Package TO-247N
Base Product Number RGS80
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 846-RGS80TSX2HRC11
Standard Package 30
Win Source Part Number 1324181-RGS80TSX2HRC11
Ultra Librarian 3D Model Ultra Librarian RGS80TSX2HRC11 CAD Model

Description

The RGS80TSX2HRC11 is a Trench Field Stop IGBT from Rohm Semiconductor.

  • Voltage - Collector Emitter Breakdown: 1200V
  • Current - Collector: 80A
