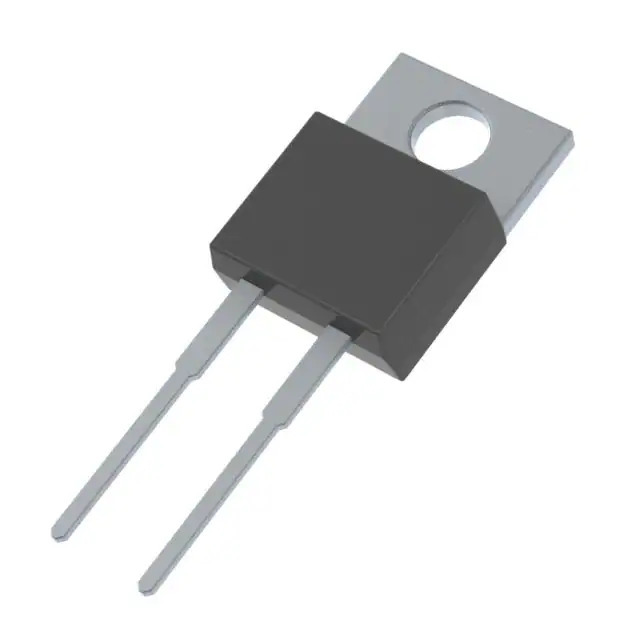

RFUH20TB4SNZC9 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RFUH20TB4SNZC9

Part No RFUH20TB4SNZC9
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 430V 20A TO220NFM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Rohm Semiconductor
Series -
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 430 V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 25 ns
Current - Reverse Leakage @ Vr 10 µA @ 430 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220NFM
Operating Temperature - Junction 150°C
Base Product Number RFUH20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366919-RFUH20TB4SNZC9
Ultra Librarian 3D Model Ultra Librarian RFUH20TB4SNZC9 CAD Model

Description

The 1366919-RFUH20TB4SNZC9 is a single rectifier diode from Rohm Semiconductor.

  • Maximum Reverse Voltage: 430V
  • Average Rectified Current: 20A
  • Forward Voltage: 1.7V @ 20A
  • Reverse Recovery Time: 25ns
  • Reverse Leakage Current: 10µA @ 430V
  • Mounting Type: Through-Hole
  • Package: TO-220-2 Full Pack
