Manufacturer Rohm Semiconductor
Win Source Part Number 1241848-RB070M-30
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RB070M-30 CAD Model

Description

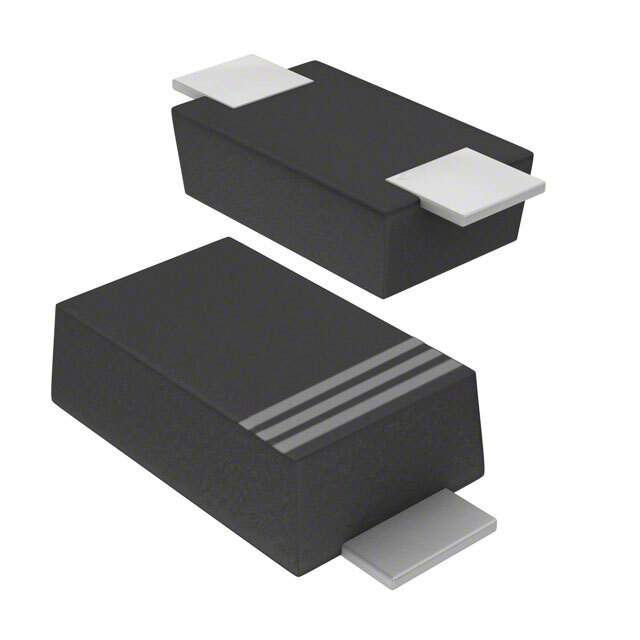

The RB070M-30 is a Schottky Barrier Diode manufactured by Rohm Semiconductor. This diode is designed for high-speed switching applications and features a low forward voltage drop, making it suitable for various electronic circuits that require efficient power management.

Applications:

  • High-speed switching circuits
  • DC-DC converters
  • Reverse polarity protection
  • Free-wheeling diodes
  • Voltage clamping

Features:

  • Low forward voltage drop
  • High-speed switching capability
  • Compact surface-mount package
  • Low leakage current
  • High surge current capability

Benefits:

  • Improved efficiency in power conversion
  • Reduced power loss and heat generation
  • Smaller and lighter designs
  • Enhanced system reliability
  • Long operational life

Additional Details:

The RB070M-30 features a repetitive peak reverse voltage of 30V and a maximum average forward current of 700mA. The forward voltage drop is typically around 0.4V at 700mA. This diode is commonly packaged in a small mold (SMD) such as the MIni Mold package (PMDU) which allows for high-density mounting on PCBs. Its low leakage current minimizes power losses, contributing to the overall efficiency of the circuit. It exhibits a fast reverse recovery time, critical for high-speed switching applications. The operating temperature range typically extends from -40°C to +125°C. Rohm Semiconductor provides comprehensive datasheets containing detailed electrical characteristics and application notes.

The RB070M-30 is an excellent choice for diverse applications where efficient rectification and rapid switching are crucial. Its low forward voltage drop and high-speed capabilities make it well-suited for modern electronic designs requiring space-saving and high performance.
