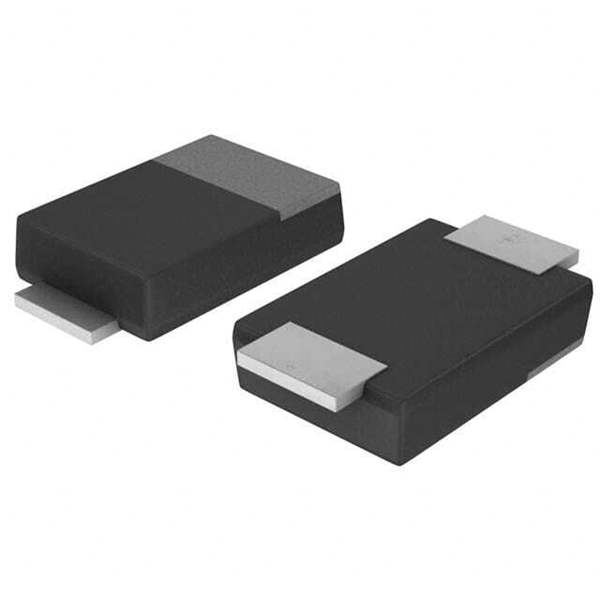

RB055LA-40TFTR
Same model may have multiple batches, images only for reference.

RB055LA-40TFTR

Part No RB055LA-40TFTR
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 3A PMDT / Diode 40 V 3A Surface Mount PMDT
Datasheet
RB055LA-40TFTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 620 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 40 V
Mounting Type Surface Mount
Package / Case SOD-128
Supplier Device Package PMDT
Operating Temperature - Junction 150°C
Base Product Number RB055
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 891175-RB055LA-40TFTR
Ultra Librarian 3D Model Ultra Librarian RB055LA-40TFTR CAD Model

Description

The RB055LA-40TFTR is a fast recovery diode designed for rectification applications from Rohm Semiconductor.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 3A
  • Recovery Time: less than 500ns
  • Forward Voltage: 620mV @ 3A
  • Reverse Leakage Current: 100μA @ 40V
  • Package: SOD-128 package
  • Mounting: surface mount applications
  • Technology: Schottky
  • Junction Rating: 150°C
  • Status: obsolete
