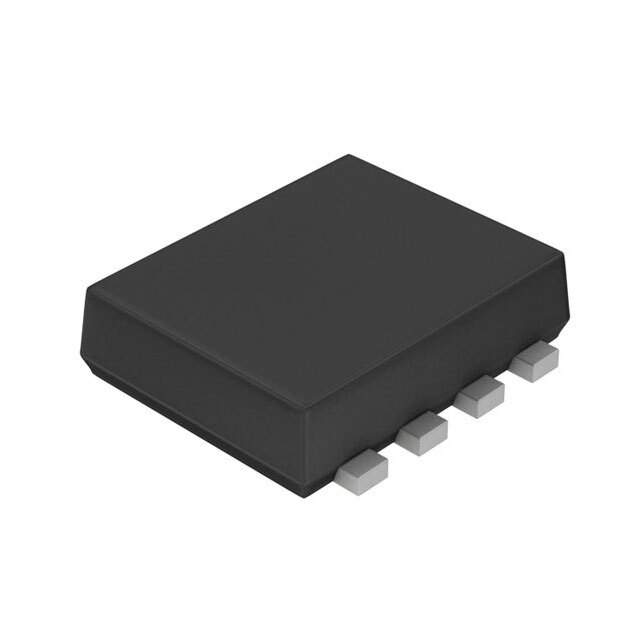

QH8MA3TCR Real Image
Same model may have multiple batches, images only for reference.

QH8MA3TCR

Part No QH8MA3TCR
Manufacturer Rohm Semiconductor
Catalog FETs - Arrays
Description MOSFET N/P-CH 30V TSMT8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
FET Type N and P-Channel
FET Feature Standard
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) at 25°C 7A, 5.5A
Rds On (Maximum) at Id, Vgs 29mOhm at 7A, 10V
Vgs(th) (Maximum) at Id 2.5V at 1mA
Gate Charge (Qg) (Maximum) at Vgs 7.2nC at 10V
Input Capacitance (Ciss) (Maximum) at Vds 300pF at 15V
Power - Max 1.5W
Temperature Range - Operating 150°C
Mounting Style SMD
Manufacturer Package 8-SMD, Flat Lead
Supplier Device Package TSMT8
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805347-QH8MA3TCR
Ultra Librarian 3D Model Ultra Librarian QH8MA3TCR CAD Model

Description

The Rohm Semiconductor QH8MA3TCR is an N and P-channel FET from Rohm Semiconductor.

  • Drain-to-Source Voltage: 30V
  • Maximum Power: 1.5W
  • Gate Charge: 7.2nC @ 10V
  • Input Capacitance: 300pF @ 15V
  • Package: 8-SMD, flat lead
  • Maximum Rds On: 29mOhm @ 7A, 10V
  • Temperature Range: 150°C
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (unlimited)
