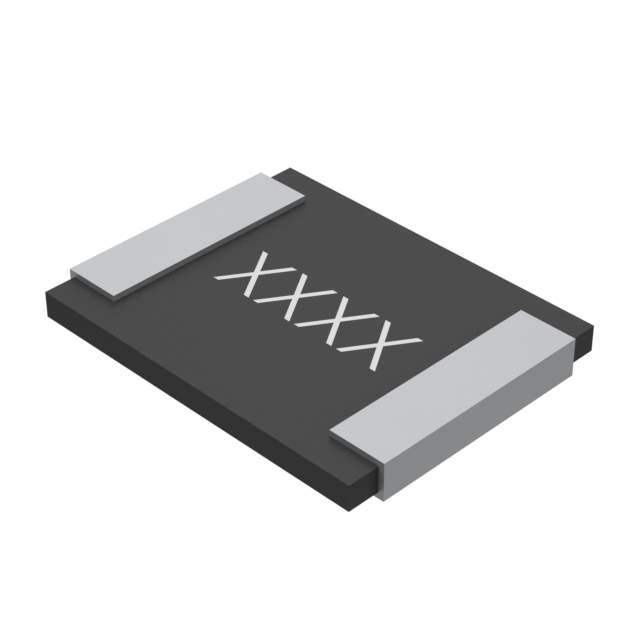

PMR25HZPFU5L00 Real Image
Same model may have multiple batches, images only for reference.

PMR25HZPFU5L00

Part No PMR25HZPFU5L00
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 1W 1210 / 5 mOhms ±1% 1W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200, Current Sense Metal Element
Datasheet
PMR25HZPFU5L00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series PMR
Package Tape & Reel
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Ratings AEC-Q200
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.019" (0.47mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names Q7646765,RHM.005APDKR,PMR25HZPFU5L00-ND,RHM.005APTR,RHM.005APCT
Standard Package 2,000
Win Source Part Number 1123611-PMR25HZPFU5L00
Ultra Librarian 3D Model Ultra Librarian PMR25HZPFU5L00 CAD Model

Description

The Rohm Semiconductor PMR25HZPFU5L00 is a chip resistor that belongs to the PMR series.

  • Series: PMR
  • Resistance: 5 mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • AEC-Q200 Rated: Yes
  • Power Rating: 1W
  • Height: 0.019" (0.47mm)
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Composition: Metal Element
  • Package/Case: 1210 (3225 Metric)
  • Operating Temperature: -55°C to 155°C
  • Packaging: Tape and Reel
  • Applications: Automotive AEC-Q200, Current Sense
