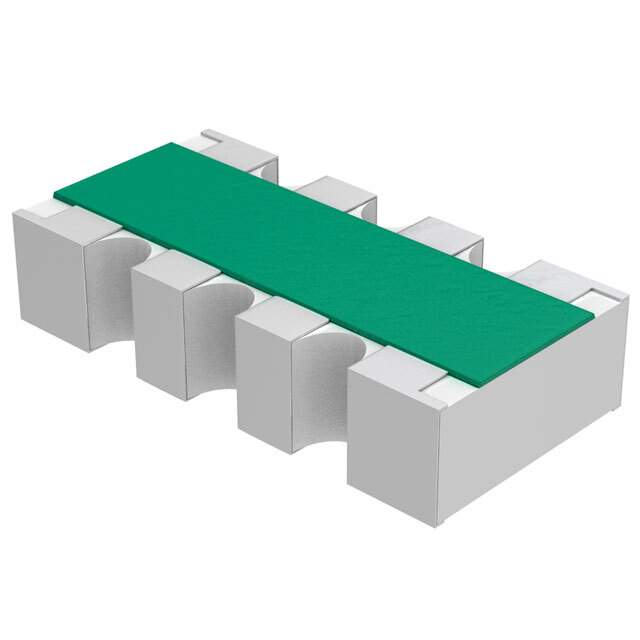

MNR04MRAPJ272 Real Image
Same model may have multiple batches, images only for reference.

MNR04MRAPJ272

Part No MNR04MRAPJ272
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 2.7K OHM 0804
Datasheet
MNR04MRAPJ272 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Rohm Semiconductor
Series MNR
Circuit Type Isolated
Resistance (Ohms) 2.7k
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Operating Temperature Range -55°C ~ 155°C
Mounting SMD
Package 0804, Convex, Long Side Terminals
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Maximum) 0.020" (0.50mm)
Win Source Part Number 784849-MNR04MRAPJ272
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MNR04MRAPJ272 CAD Model

Description

The MNR04MRAPJ272 is a 2.7k ohm, 4-resistor isolated circuit type resistor from Rohm Semiconductor.

  • Resistance: 2.7k ohm
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature Range: -55°C to 155°C
  • Package: 0804 convex
  • Mounting: SMD
  • Terminals: Long side
  • Power per Element: 62.5mW
