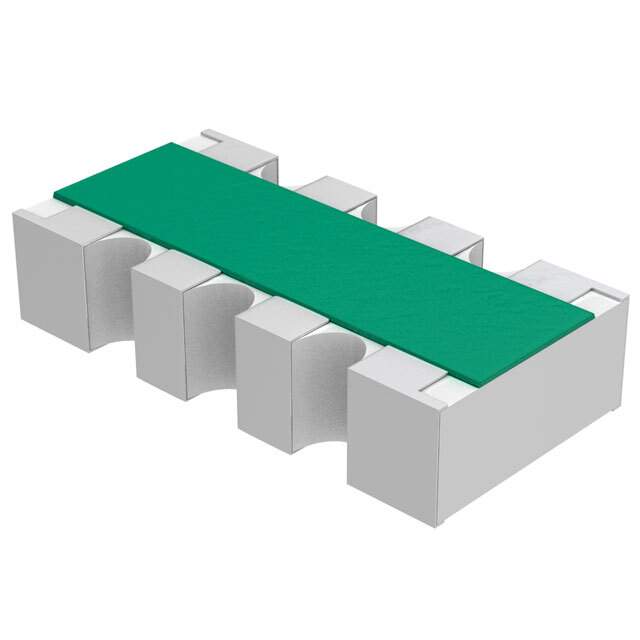

MNR04M0APJ820

Part No MNR04M0APJ820
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 82 OHM 0804 / 82 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Convex, Long Side Terminals
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Circuit Type Isolated
Resistance (Ohms) 82
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200
Mounting Surface Mount
Case / Package 0804, Convex, Long Side Terminals
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.018" (0.45mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Part Number MNR04820RDKR,MNR04820RTR,MNR04820RCT
Standard Package 10,000
Win Source Part Number 1328266-MNR04M0APJ820
Ultra Librarian 3D Model Ultra Librarian MNR04M0APJ820 CAD Model

Description

The Rohm Semiconductor MNR04M0APJ820 is a resistor network/array that is supplied in a reel - TR packaging.

  • Packaging: Reel - TR
  • Size/Dimension: 0.079" L x 0.039" W (2.00mm x 1.00mm)
  • Application: Automotive AEC-Q200
  • Resistance: 82 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Per Element: 62.5mW
  • Temperature Range: -55°C to 155°C
  • Case/Package: 0804, Convex, Long Side Terminals
  • MSL Level: 1 (Unlimited)
