Same model may have multiple batches, images only for reference.

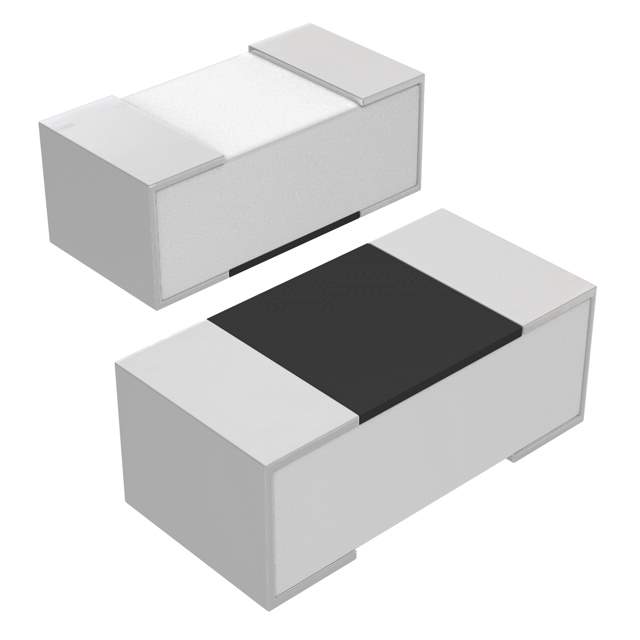

MCR006YZPJ103 Real Image
Same model may have multiple batches, images only for reference.

MCR006YZPJ103

Part No MCR006YZPJ103
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 10K OHM 5% 1/20W 0201 / 10 kOhms ±5% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series MCR
Package Tape & Reel
Resistance 10 kOhms
Tolerance ±5%
Power (Watts) 0.05W, 1/20W
Composition Thick Film
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names RHM10KAGTR,RHM10KAGDKR,RHM10KAGCT,Q3804947H
Standard Package 15,000
Win Source Part Number 992688-MCR006YZPJ103
Ultra Librarian 3D Model Ultra Librarian MCR006YZPJ103 CAD Model

Description

The Rohm Semiconductor MCR006YZPJ103 is a Chip Resistor that has a surface mount package of 0201 (0603 Metric).

  • Resistance: 10 kOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Power Rating: 0.05W or 1/20W
  • Composition: Thick film
  • Terminations: 2
  • Operating Temperature Range: -55°C to 125°C
  • Package Quantity: 15,000
  • Supplier Device Package: 0201
  • Height (Seated): 0.010" (0.26mm)
  • Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: REACH Unaffected
  • HTSUS Code: 8533.21.0030
  • Other Names: RHM10KAGTR, RHM10KAGDKR, RHM10KAGCT, Q3804947H
