Same model may have multiple batches, images only for reference.

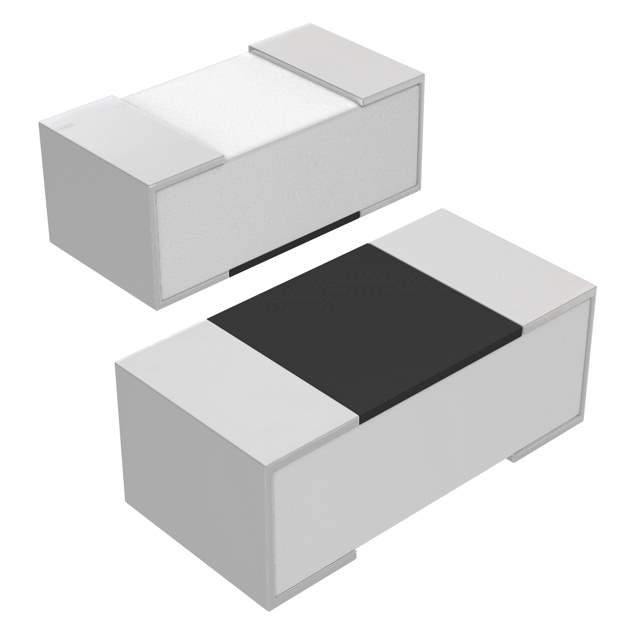

MCR006YZPF1004 Real Image
Same model may have multiple batches, images only for reference.

MCR006YZPF1004

Part No MCR006YZPF1004
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 1M OHM 1% 1/20W 0201 / 1 MOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series MCR
Package Tape & Reel (TR)
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 0.05W, 1/20W
Composition Thick Film
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names Q3804947G,RHM1.0MABCT,RHM1.0MABTR,RHM1.0MABDKR
Standard Package 15,000
Win Source Part Number 958303-MCR006YZPF1004
Ultra Librarian 3D Model Ultra Librarian MCR006YZPF1004 CAD Model

Description

The MCR006YZPF1004 from Rohm Semiconductor is a chip resistor with a surface mount feature. The MCR series has a standard package of 15,000 and a tolerance of ±1%.

  • Temperature Coefficient: ±250ppm/°C
  • Power (watts): 0.05W, 1/20W
  • Composition: Thick film
  • Package/Case: 0201 (0603 metric)
  • Supplier Device Package: 0201
  • Temperature Range Operating: -55°C to 125°C
  • Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
