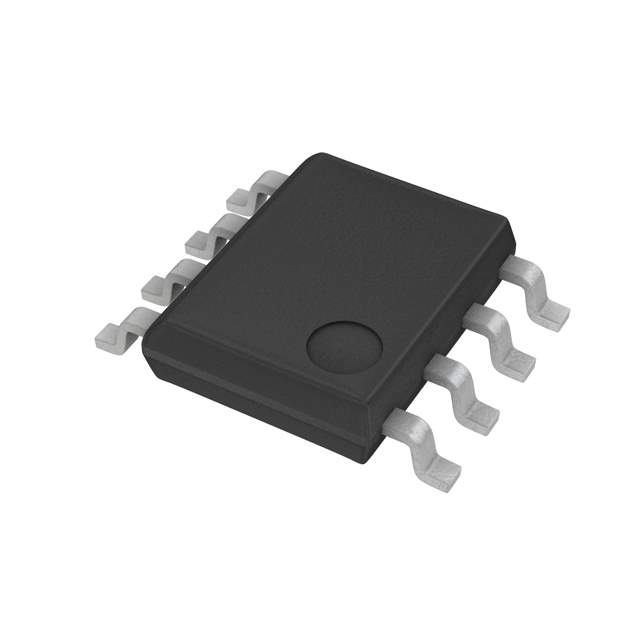

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 18V
Output Voltage 0.8V
Output Voltage MAX 12.6V
Output Current 3A
Frequency - Switching 500kHz
Synchronous Rectifier Yes
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 8-SOIC (0.154", 3.90mm Width)
Manufacturer Package 8-SOP-J
Manufacturer Homepage www.rohm.com
Win Source Part Number 752342-BD9C301FJ-E2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BD9C301FJ
Introduction Date January 01, 2000
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BD9C301FJ-E2 CAD Model

Description

It has a balanced supply and demand status and is packaged in an 8-SOIC reference case with a width of 0.154 inches or 3.90mm.

  • Component Type: integrated circuit (IC)
  • Output Type: adjustable
  • Function Topology: step-down
  • Switching Frequency: 500kHz
  • Output Configuration: one output
  • Output Current: 3A (positive)
  • Family: BD9C301FJ
  • Output Voltage: 0.8V
  • Maximum Output Voltage: 12.6V
  • Input Voltage Range: 4.5V to 18V
  • Rectifier: synchronous
  • Manufacturer's Homepage: www.rohm.com
  • Estimated EOL Date: 2024
