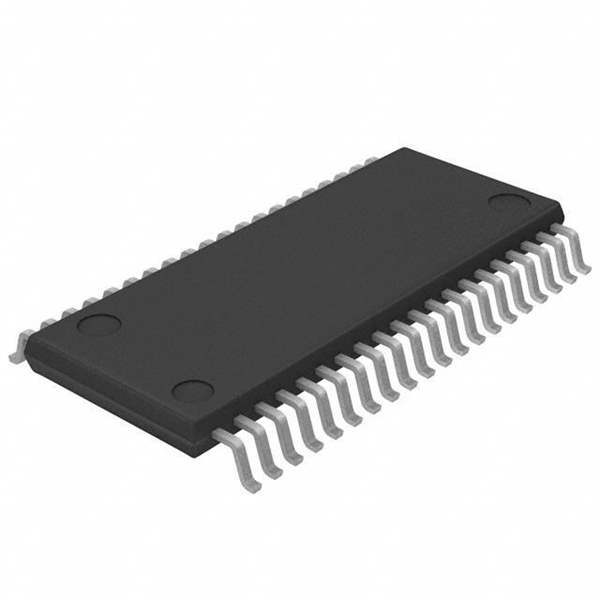

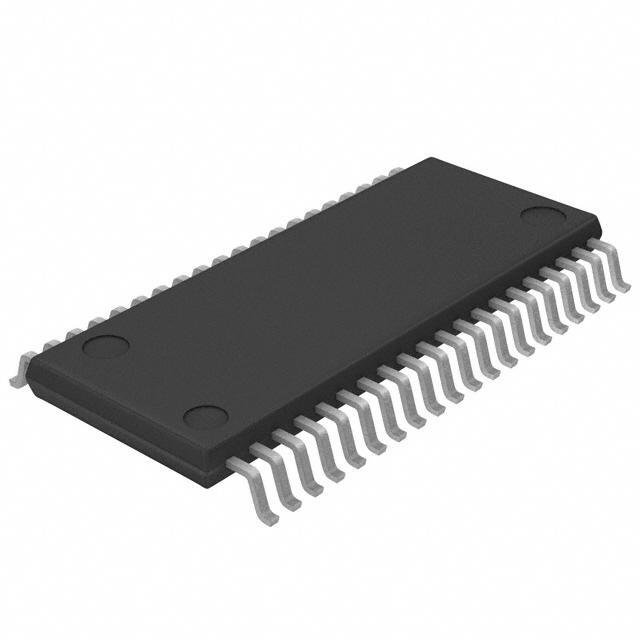

BD9422EFV-E2 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

BD9422EFV-E2

Part No BD9422EFV-E2
Manufacturer Rohm Semiconductor
Catalog PMIC - LED Drivers
Description IC WHITE LED DRIVER 40HTSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Reel
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Voltage - Supply (Min) 9V
Voltage - Supply (Maximum) 35V
Current - Output / Channel 400mA
Frequency 500kHz
Dimming Analog, PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 40-VSSOP (0.213", 5.40mm Width) Exposed Pad
Supplier Device Package 40-HTSSOP-B
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801346-BD9422EFV-E2
Ultra Librarian 3D Model Ultra Librarian BD9422EFV-E2 CAD Model

Description

The BD9422EFV-E2 is a DC DC regulator from Rohm Semiconductor.

  • Mounting Style: SMD
  • Applications: Backlight
  • Frequency: 500kHz
  • Current Output/Channel: 400mA
  • Internal Switch: Yes
  • Topology: Step-up (boost)
  • Outputs: 6
  • Dimming: Analog and PWM
  • Voltage Supply (min): 9V
  • Voltage Supply (max): 35V
  • Supplier Device Package: 40-HTSSOP-B
  • Manufacturer Package: 40-VSSOP (0.213", 5.40mm Width) Exposed Pad
  • Supply and Demand Status: Sufficient
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 3 (168 hours)
  • Temperature Range - Operating: -40°C to 85°C
