Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Win Source Part Number 1152786-BD5343FVE
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD5343FVE CAD Model

Description

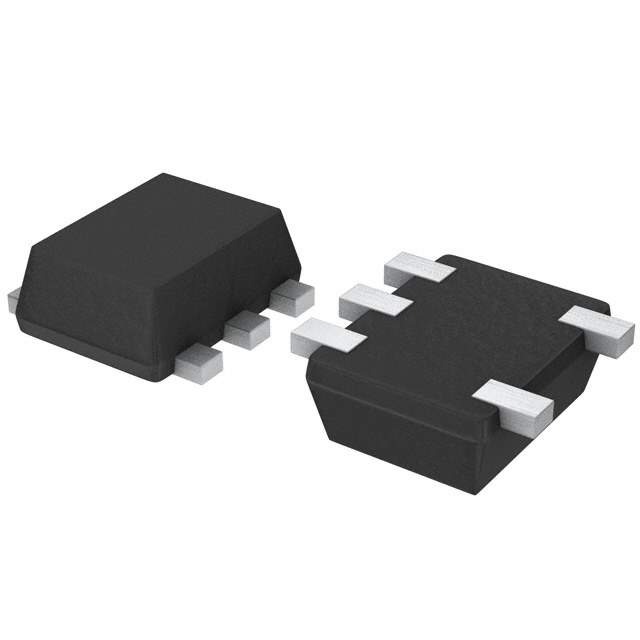

The BD5343FVE is a window voltage detector IC manufactured by Rohm Semiconductor. Unlike standard voltage detectors that monitor a single threshold, the BD5343FVE monitors both an upper and lower voltage threshold, making it a window voltage detector. This allows it to detect if a voltage is within a specified range. If the voltage goes above the upper threshold or below the lower threshold, the IC will output a signal. This functionality is vital for protecting sensitive electronic components from overvoltage and undervoltage conditions.

Applications:

  • Power Supply Monitoring: Ensuring a power supply's output voltage remains within acceptable limits.
  • Overvoltage and Undervoltage Protection: Protecting sensitive electronic circuits from damage due to voltage fluctuations.
  • Battery Monitoring Systems: Monitoring battery voltage to prevent overcharging or deep discharging.
  • Industrial Control Systems: Monitoring voltage levels in industrial equipment to maintain operational integrity.
  • Automotive Electronics: Ensuring stable voltage levels in automotive electronic control units (ECUs).

Features:

  • Window Voltage Detection: Monitors both upper and lower voltage thresholds.
  • High Accuracy: Provides precise monitoring of voltage levels.
  • Low Current Consumption: Minimizes power drain, suitable for battery-powered applications.
  • Open Drain Output: Offers flexibility in interfacing with various logic circuits.
  • Compact Package: Available in small surface-mount packages.

Benefits:

  • Enhanced Protection: Provides robust protection against both overvoltage and undervoltage conditions.
  • Improved System Reliability: Prevents system malfunctions due to voltage fluctuations.
  • Extended Battery Life: Low power consumption contributes to longer battery life in portable devices.
  • Simplified Design: Integrates window voltage detection into a single chip.
  • Flexible Application: Suitable for a wide range of voltage monitoring applications.

Additional Details: The upper and lower detection voltages are factory-set and specified in the part number. The output is typically active-low. Hysteresis is often included to prevent oscillations. Consult the Rohm Semiconductor datasheet for detailed electrical characteristics, timing diagrams, and application guidelines for proper implementation and performance optimization. Be sure to select the correct voltage range for your application based on the specific tolerances of your system.
