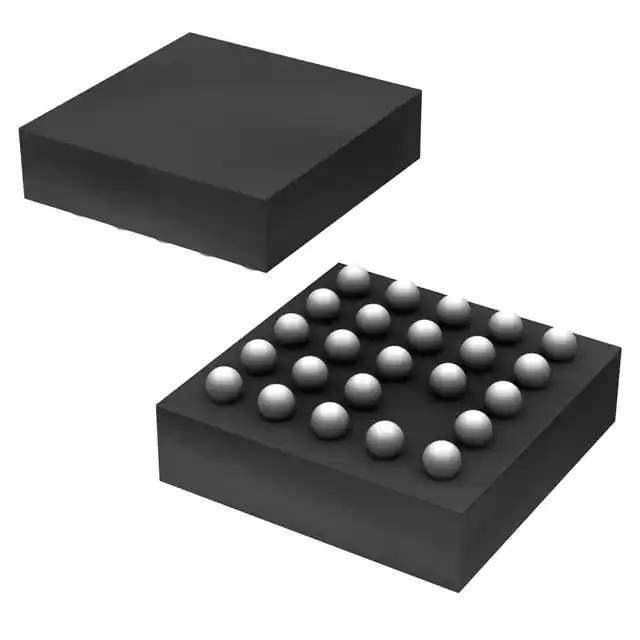

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 2
Voltage - Supply (Min) 2.7V
Voltage - Supply (Max) 5.5V
Voltage - Output 3.9V, 4.2V, 4.5V, 4.8V
Current - Output / Channel 30.48mA
Frequency 1MHz
Dimming I2C
Applications LED Lighting
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 32-VFBGA, CSPBGA
Supplier Device Package VCSP85H3
Base Product Number BD2812
Standard Package 2,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 752318-BD2812GU-E2
Ultra Librarian 3D Model Ultra Librarian BD2812GU-E2 CAD Model

Description

The 752318-BD2812GU-E2 is an integrated circuit (IC) designed for power management of LED lighting applications.

  • IC Type: DC-DC regulator
  • Supply Voltage Range: 2.7V to 5.5V
  • Outputs: 2
  • Output Voltages: 3.9V, 4.2V, 4.5V, and 4.8V
  • Frequency: 1MHz
  • Current Output (per channel): 30.48mA
  • Internal Switch: No
  • Topology: Step-up (boost)
  • Packaging: Tape and reel
  • Standard Package Quantity: 2,500 pieces
  • Package Type: 32-VFBGA, CSPBGA
  • Supplier Device Package: VCSP85H3
  • Operating Temperature Range: -40°C to 85°C
  • ECCN Code: EAR99
  • MSL Level: 3 (168-hour floor life)
  • REACH Status: Unaffected
  • HTSUS Code: 8542.39.0001
