Same model may have multiple batches, images only for reference.

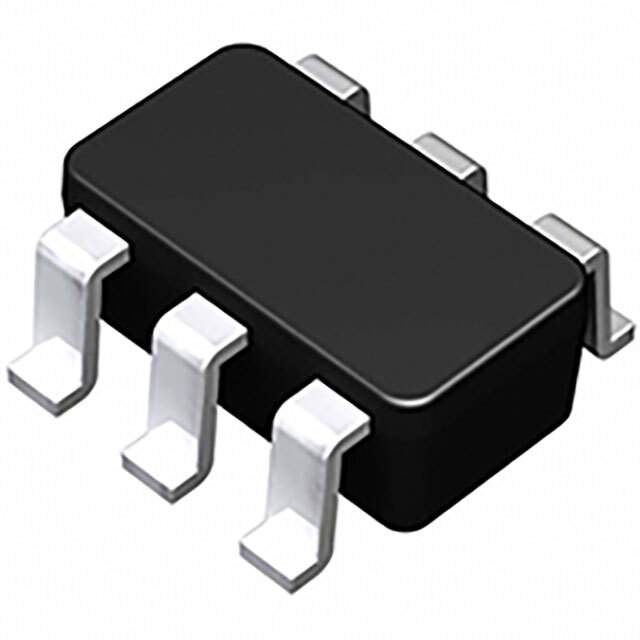

BD2243G-GTR Real Image
Same model may have multiple batches, images only for reference.

BD2243G-GTR

Part No BD2243G-GTR
Manufacturer Rohm Semiconductor
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC USB PWR SW HI SIDE 1CH 6SSOP
Datasheet
BD2243G-GTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Switch Type USB Switch
Number of Outputs 1
Output Type N-Channel
Voltage - Load 2.8 V to 5.5 V
Supply Voltage - Operating Not Required
Current - Output (Max) 1.7A
Rds On (Typ) 89 mOhm
Input Type Non-Inverting
Features Load Discharge, Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 6-SSOP
Win Source Part Number 1022863-BD2243G-GTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD2243G-GTR CAD Model

Description

The Rohm Semiconductor BD2243G-GTR is a USB switch featuring load discharge and status flag capabilities.

  • Output Channel: Single
  • Output Type: N-Channel
  • Input Type: Non-Inverting
  • Fault Protection: Current Limiting, Over Temperature, Reverse Current, and UVLO
  • Maximum Current Output: 1.7A
  • Voltage Load Range: 2.8V to 5.5V
  • Rds On (Typ): 89 mOhm
  • Package: 6-SSOP
  • Operating Temperature Range: -40℃ to 85℃ (TA)
  • Category: Integrated Circuit
  • Supply and Demand Status: Balanced
