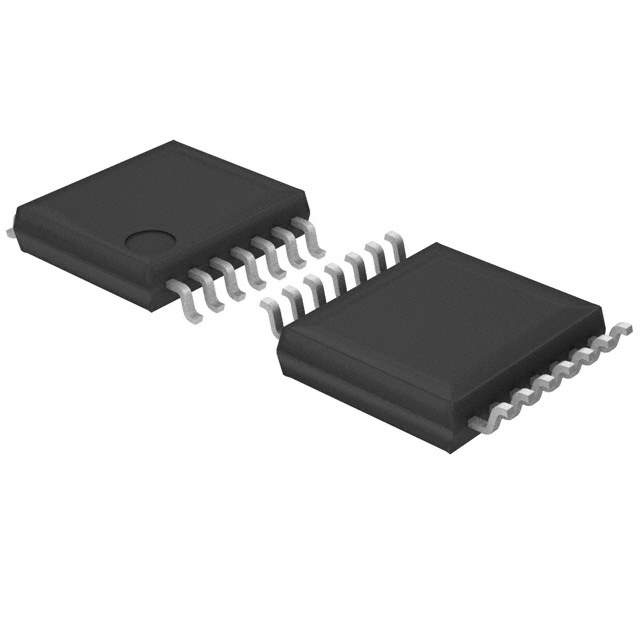

The BA4584YFV-MGE2 is a quad operational amplifier IC manufactured by Rohm Semiconductor. This IC contains four independent, high-performance operational amplifiers in a single package. It is designed for a wide range of applications requiring signal amplification, buffering, or filtering. The BA4584YFV-MGE2 is characterized by its low noise, low distortion, and high gain, making it suitable for demanding applications in audio and instrumentation circuits. It operates with either single or dual power supplies, offering flexibility in design.

Applications:

• Audio Amplifiers
• Active Filters
• Instrumentation Amplifiers
• Sensor Signal Conditioning
• Voltage Followers

Features:

• Quad Operational Amplifiers: Integrates four independent op-amps in a single package, saving board space.
• Low Noise: Minimizes unwanted noise in sensitive signal amplification.
• Low Distortion: Provides accurate signal reproduction with minimal harmonic distortion.
• High Gain: Offers high open-loop gain for precise amplification.
• Single or Dual Power Supply Operation: Provides flexibility in power supply configurations.
• Wide Input Voltage Range: Accommodates a broad range of input signal levels.
• Internal Frequency Compensation: Ensures stable operation without external compensation components.
• Short-Circuit Protection: Protects the op-amp from damage due to output short circuits.

Benefits:

• Space Saving: The quad configuration reduces component count and board space requirements.
• High-Quality Signal Amplification: Low noise and distortion ensure accurate and clean signal processing.
• Design Flexibility: Operates with either single or dual power supplies, adapting to various circuit designs.
• Stable Performance: Internal frequency compensation provides stable operation without external components.
• Enhanced Reliability: Short-circuit protection enhances the robustness and reliability of the system.

Additional Details:

The BA4584YFV-MGE2 is commonly used in audio equipment, instrumentation systems, and industrial control applications. Its high performance and versatile features make it a suitable choice for a wide variety of signal processing tasks. The op-amp's performance characteristics, such as input offset voltage, input bias current, and slew rate, are detailed in the Rohm Semiconductor datasheet. External resistors and capacitors can be used to configure the op-amp for specific gain, filtering, or other signal processing requirements.

Electrical specifications include a typical supply voltage range of ±2V to ±18V (dual supply) or 4V to 36V (single supply), a low input noise voltage, and a high slew rate. Application notes provide detailed information on component selection and circuit optimization.
