Same model may have multiple batches, images only for reference.

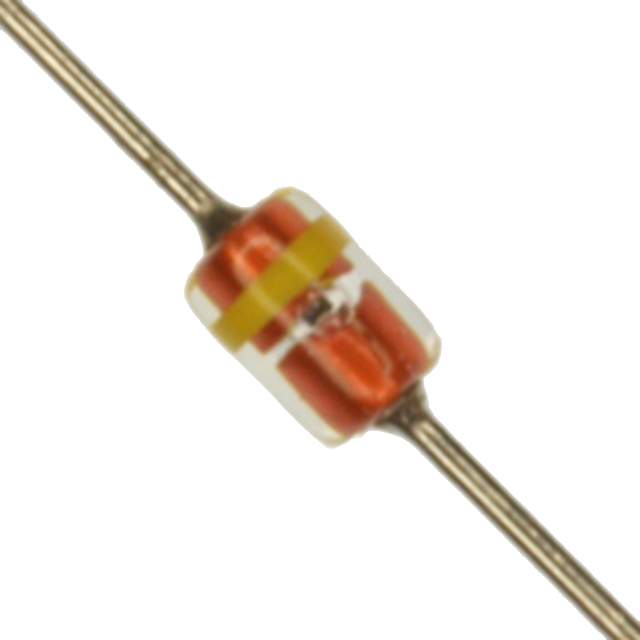

1SS244T-77 Real Image
Same model may have multiple batches, images only for reference.

1SS244T-77

Part No 1SS244T-77
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 220V 200MA MSD
Datasheet
1SS244T-77 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 220V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1.5V @ 200mA
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 10μA @ 220V
Capacitance @ Vr, F 3pF @ 0V, 1MHz
Mounting Through Hole
Case / Package MSD
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 1002850-1SS244T-77
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1SS244T-77 CAD Model

Description

The Rohm Semiconductor 1SS244T-77 is a standard diode with a voltage - DC reverse (Vr) (Max) of 220V and a current - average rectified (Io) of 200mA.

  • Voltage - DC Reverse (Vr) (Max): 220V
  • Current - Average Rectified (Io): 200mA
  • Voltage - Forward (Vf) (Max) @ If: 1.5V @ 200mA
  • Reverse Recovery Time (trr): 75ns
  • Current - Reverse Leakage @ Vr: 10μA @ 220V
  • Capacitance @ Vr, F: 3pF @ 0V, 1MHz
  • Mounting Type: Through Hole
  • Package: Ammo
  • Operating Temperature - Junction: 175°C (Max)
