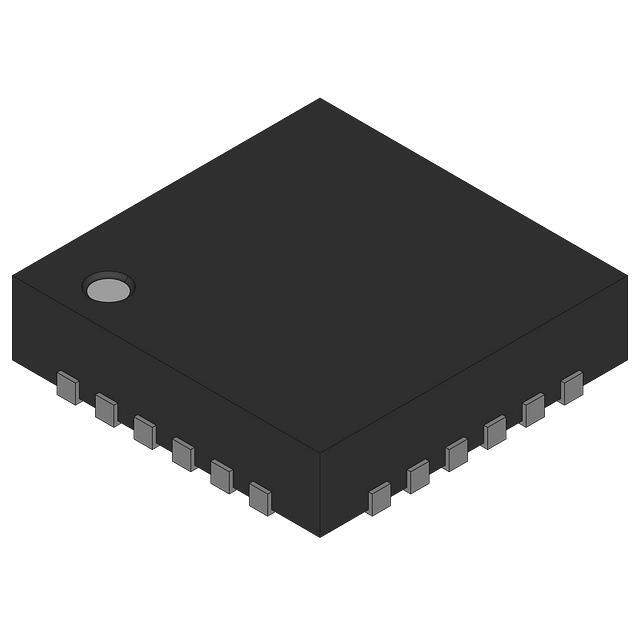

MC9S08JS16LCFK Real Image
Same model may have multiple batches, images only for reference.

MC9S08JS16LCFK

Part No MC9S08JS16LCFK
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 24QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features S08 series Microcontroller IC 8-Bit 48MHz 16KB (16K x 8) FLASH 24-HVQFN (5x5)
Manufacturer Freescale Semiconductor - NXP
Series S08
Package Bulk
Core Processor S08
Core Size 8-Bit
Speed 48MHz
Connectivity LINbus, SCI, SPI, USB
Peripherals LVD, POR, PWM
Number of I/O 14
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Supply Voltage 2.7V ~ 5.5V
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 24-VQFN Exposed Pad
Case / Package 24-HVQFN (5x5)
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 926427-MC9S08JS16LCFK
Ultra Librarian 3D Model Ultra Librarian MC9S08JS16LCFK CAD Model

Description

The MC9S08JS16LCFK is a microcontroller IC from Freescale Semiconductor - NXP.

  • Part Number: 926427-MC9S08JS16LCFK
  • Series: S08
  • Core Processor: S08
  • Speed: 48MHz
  • Core Size: 8-bit
  • Program Memory Size: 16KB (16K x 8) FLASH
  • Supply Voltage: 2.7V ~ 5.5V
  • Mounting Technology: Surface Mount
  • Package: 24-VQFN Exposed Pad
  • Connectivity: LINbus, SCI, SPI, USB
  • Peripherals: LVD, POR, PWM
  • Number of I/O: 14
  • Oscillator Type: Internal
  • Supply and Demand Status: Balanced
  • Package Quantity: One piece
