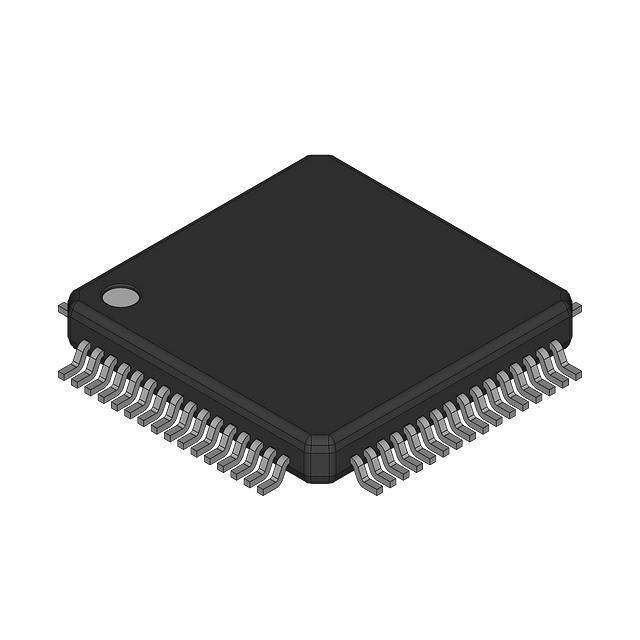

MC9S08DZ32ACLH Real Image
Same model may have multiple batches, images only for reference.

MC9S08DZ32ACLH

Part No MC9S08DZ32ACLH
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 32KB FLASH 64LQFP
Datasheet
MC9S08DZ32ACLH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features S08 series Microcontroller IC 8-Bit 40MHz 32KB (32K x 8) FLASH 64-LQFP (10x10)
Manufacturer Freescale Semiconductor - NXP
Series S08
Package Tray
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity CANbus, I2C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 53
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size 1K x 8
Supply Voltage 2.7V ~ 5.5V
Data Converters A/D 24x12b
Oscillator Type External
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 64-LQFP
Case / Package 64-LQFP (10x10)
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883874-MC9S08DZ32ACLH
Ultra Librarian 3D Model Ultra Librarian MC9S08DZ32ACLH CAD Model

Description

The MC9S08DZ32ACLH is a S08 series microcontroller IC from Freescale Semiconductor - NXP.

  • Core Size: 8-bit
  • Speed: 40MHz
  • Program Memory: 32KB (32K x 8) FLASH
  • EEPROM Memory: 1K x 8
  • I/Os: 53
  • Connectivity: CANbus, I2C, LINbus, SCI, SPI
  • Peripherals: LVD, POR, PWM, WDT
  • Operating Temperature: -40°C to 85°C
  • Package: 64-LQFP
  • Mounting: Surface-mount
  • Popularity: Moderately popular
