Same model may have multiple batches, images only for reference.

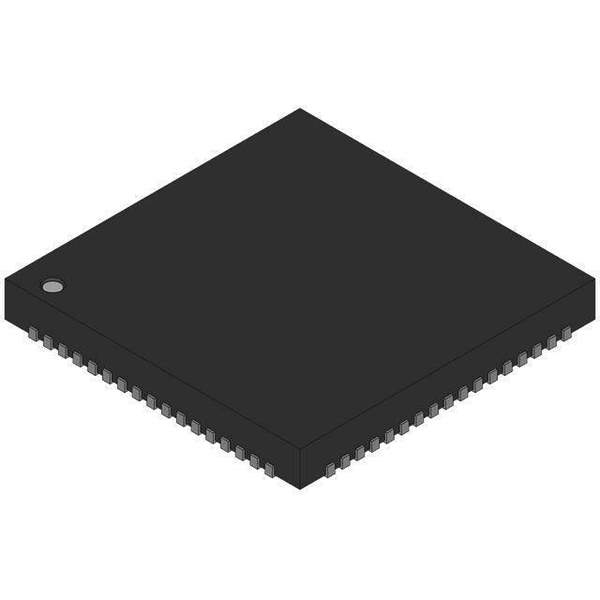

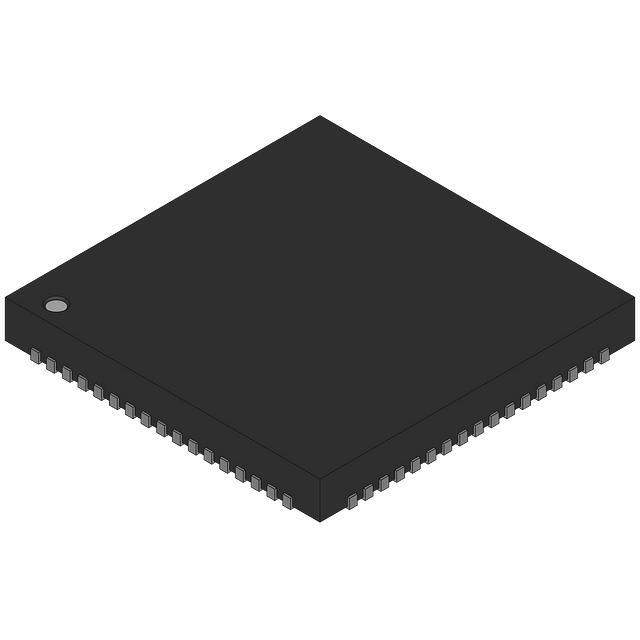

CY8C5568LTI-114 Real Image
Same model may have multiple batches, images only for reference.

CY8C5568LTI-114

Part No CY8C5568LTI-114
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 256KB FLASH 68QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features ARM® Cortex®-M3 series Microcontroller IC 32-Bit 67MHz 256KB (256K x 8) FLASH 68-QFN (8x8)
Manufacturer Cypress Semiconductor Corp
Series PSOC® 5 CY8C55
Package Tray
Part Status Obsolete
Core Processor ARM® Cortex®-M3
Core Size 32-Bit
Speed 67MHz
Connectivity I2C, LINbus, SPI, UART/USART, USB
Peripherals CapSense, DMA, LCD, POR, PWM, WDT
Number of I/O 36
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
Supply Voltage 2.7V ~ 5.5V
Data Converters A/D 1x20b, 2x12b; D/A 4x8b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 68-VFQFN Exposed Pad
Case / Package 68-QFN (8x8)
ECCN 3A991A3
HTSUS 8542.31.0001
Quantity per package 260
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867853-CY8C5568LTI-114
Ultra Librarian 3D Model Ultra Librarian CY8C5568LTI-114 CAD Model

Description

The Cypress Semiconductor Corp CY8C5568LTI-114 is a PSOC® 5 CY8C55 series microcontroller IC.

  • Core Processor: 32-bit ARM® Cortex®-M3
  • Speed: 67MHz
  • Package: on a tray
  • Mounting: using surface mount technology
  • Package: 68-VFQFN exposed pad
  • Operating Temperature: -40°C to 85°C
  • Connectivity: I2C, LINbus, SPI, UART/USART, and USB
  • Peripherals: CapSense, DMA, LCD, POR, PWM, and WDT
  • I/O: 36
  • Program Memory Size: 256KB (256K x 8) FLASH
  • EEPROM Size: 2K x 8
  • Data Converters: A/D 1x20b, 2x12b; D/A 4x8b
  • Oscillator Type: internal
  • Supply Voltage: 2.7V to 5.5V
  • Status: now obsolete
  • Category: integrated circuit (IC)
  • Case/Package: 68-QFN (8x8)
  • Quantity per package: 260
  • HTSUS: 8542.31.0001
