Same model may have multiple batches, images only for reference.

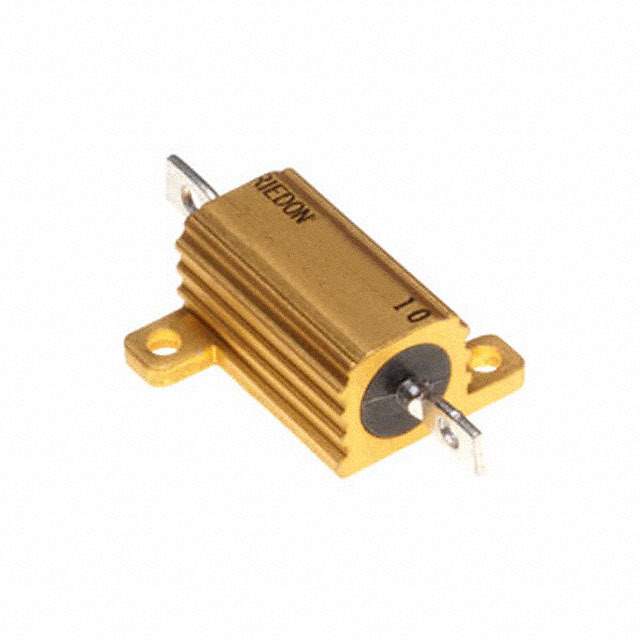

UAL10-25RF8 Real Image
Same model may have multiple batches, images only for reference.

UAL10-25RF8

Part No UAL10-25RF8
Manufacturer Riedon
Catalog Chassis Mount Resistors
Description RES CHAS MNT 25 OHM 1% 10W
Datasheet
UAL10-25RF8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Riedon
Packaging Bulk
Status Active
Resistance (Ohms) 25
Tolerance ±1%
Power (Watts) 10W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C to 275°C
Features Moisture Resistant, Pulse Withstanding
Coating, Housing Type Aluminum
Mounting Feature Flanges
Height - Seated (Max) 0.417" (10.60mm)
Lead Style Solder Lugs
Dimension Axial, Box
Win Source Part Number 122224-UAL10-25RF8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UAL10-25RF8 CAD Model

Description

The Riedon 122224-UAL10-25RF8 is a wirewound resistor with a resistance of 25 ohms and a power of 10W.

  • Features: It features moisture resistance and pulse withstanding capability.
  • Tolerance: This component has a tolerance of ±1% and a temperature coefficient of ±20ppm/°C.
  • Mounting: It has a flanges mounting feature and a height of 0.417" (10.60mm).
  • Composition: This component is composed of aluminum and is suitable for use in resistors applications.
