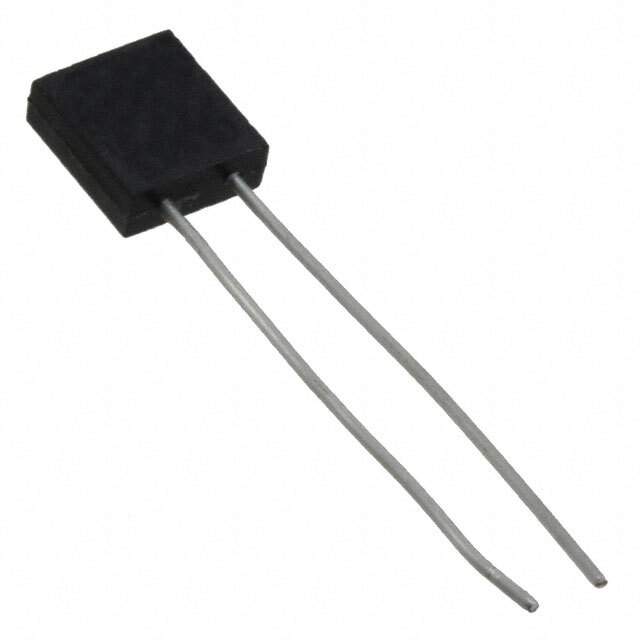

SM10-500RB Real Image
Same model may have multiple batches, images only for reference.

SM10-500RB

Part No SM10-500RB
Manufacturer Riedon
Catalog Through Hole Resistors
Description RES 500 OHM 0.1% 0.3W RADIAL / 500 Ohms ±0.1% 0.3W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Non-Inductive, Safety Wirewound
Datasheet
SM10-500RB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Riedon
Series 100/SM/PC Precision
Package Bulk
Resistance 500 Ohms
Tolerance ±0.1%
Power (Watts) 0.3W
Composition Wirewound
Features Flame Proof, Moisture Resistant, Non-Inductive, Safety
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 145°C
Package / Case Radial
Dimension 0.299" L x 0.102" W (7.60mm x 2.60mm)
Height - Seated (Max) 0.344" (8.74mm)
Number of Terminations 2
Other Names 696-1585,SM10-500RB8
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1236263-SM10-500RB
Ultra Librarian 3D Model Ultra Librarian SM10-500RB CAD Model

Description

The Riedon 1236263-SM10-500RB is a high-quality resistor that is designed to provide reliable performance.

  • Resistor Type: Wirewound
  • Features: Flame proof, moisture resistant, non-inductive, safe
  • Power Rating: 0.3W
  • Resistance: 500 Ohms
  • Termination Style: Radial
  • Number of Terminations: 2
  • Application: Through hole
