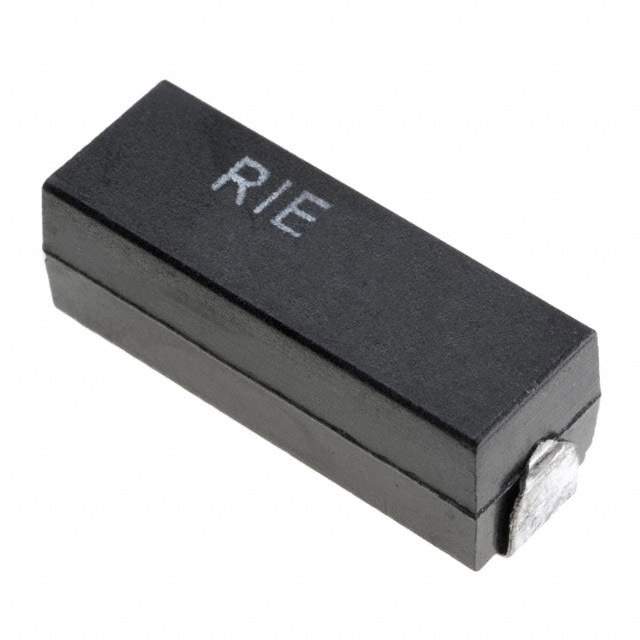

Same model may have multiple batches, images only for reference.

S5-0R05J8

Name: S5-0R05J8
Brand: Riedon
SKU: 1237163
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	S5-0R05J8
Manufacturer	Riedon
Catalog	Chip Resistor - Surface Mount
Description	RES 0.05 OHM 5% 4W 8230 / 50 mOhms ±5% 4W Chip Resistor 8230 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet	S5-0R05J8 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Riedon
Series	S
Package	Tape & Reel (TR)
Resistance	50 mOhms
Tolerance	±5%
Power (Watts)	4W
Composition	Wirewound
Features	Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating	-55°C ~ 275°C
Package / Case	8230 J-Lead
Dimension	0.819" L x 0.296" W (20.80mm x 7.50mm)
Height - Seated (Max)	0.319" (8.10mm)
Number of Terminations	2
Other Names	S-5 0.050 OHM 5%,S-5-0.050JTR,S-5-0.050JTR
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.21.0080
Win Source Part Number	1237163-S5-0R05J8
Ultra Librarian 3D Model	Ultra Librarian S5-0R05J8 CAD Model

Description

The Riedon 1237163-S5-0R05J8 is a wirewound chip resistor that belongs to the S series and has a resistance of 50 mOhms.

Series: S
Resistance: 50 mOhms
Mounting Type: Surface Mount
Package: 8230 J-lead
Power Rating: 4W
Tolerance: ±5%
Features: Flame Proof, Moisture Resistant, Pulse Withstanding, and Safety Compliant
Package: Tape and Reel
Standard Package: 500
Height: 0.319 inches
Temperature Range: -55°C to 275°C
