Same model may have multiple batches, images only for reference.

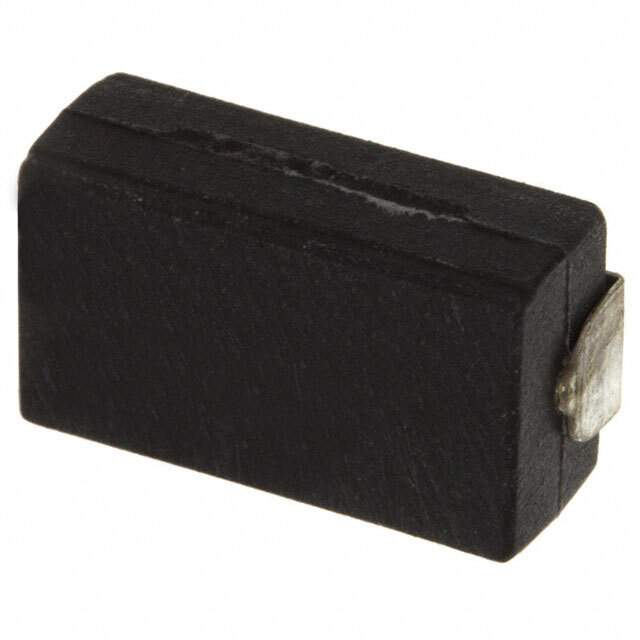

S4-4K7F1 Real Image
Same model may have multiple batches, images only for reference.

S4-4K7F1

Part No S4-4K7F1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.7K OHM 1% 2W 4525 / 4.7 kOhms ±1% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-4K7F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 4.7 kOhms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4-4700FTR,S4-4K7F1CT,S-4-4700FCT,S-4-4700FCT,S4-4K7F1DKR,S-4-4700FTR,S44K7F1,S-4-4700FDKR,S-4 4700 OHM 1%,S-4-4700FDKR,S4-4K7F1TR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237172-S4-4K7F1
Ultra Librarian 3D Model Ultra Librarian S4-4K7F1 CAD Model

Description

The Riedon chip resistor with Win Source Part Number 1237172-S4-4K7F1 is a wirewound resistor with a power of 2W and a resistance of 4.7 kOhms.

  • Power: 2W
  • Resistance: 4.7 kOhms
  • Type: Surface Mount Resistor
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Features: Flame Proof, Moisture Resistant, Pulse Withstanding, and Safety Compliant
  • Standard Package: 250
