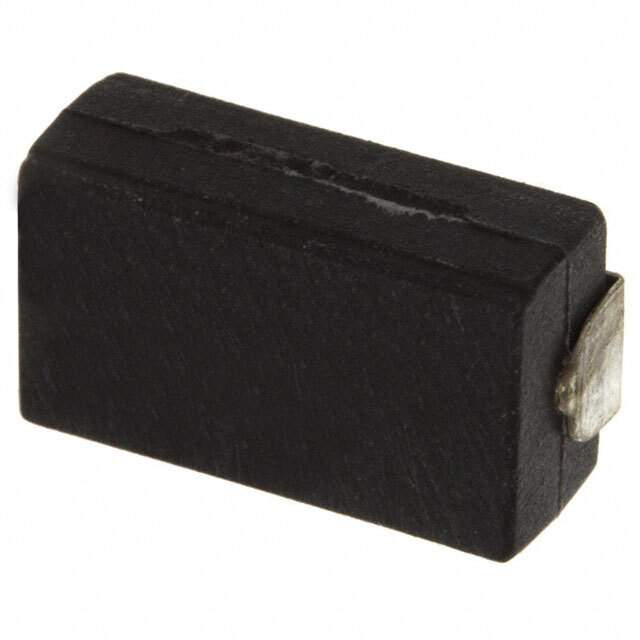

S4-1RJ1 Real Image
Same model may have multiple batches, images only for reference.

S4-1RJ1

Part No S4-1RJ1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 1 OHM 5% 2W 4525 / 1 Ohms ±5% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-1RJ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 1 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4 1.000 OHM 5%,S-4-1.000JTR,S-4-1.000JTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237198-S4-1RJ1
Ultra Librarian 3D Model Ultra Librarian S4-1RJ1 CAD Model

Description

The Riedon S-4-1RJ1 is a 2W chip resistor that is designed for surface mount applications.

  • Resistance: 1 Ohms
  • Tolerance: ±5%
  • Power Rating: 2W
  • Composition: Wirewound
  • Temperature Coefficient: ±50ppm/°C
  • Features: Flameproof, moisture-resistant, and pulse-withstanding
  • Package Dimension: 0.449" L x 0.252" W (11.40mm x 6.40mm)
  • Mounting Type: Surface Mount
  • Manufacturer: Riedon
