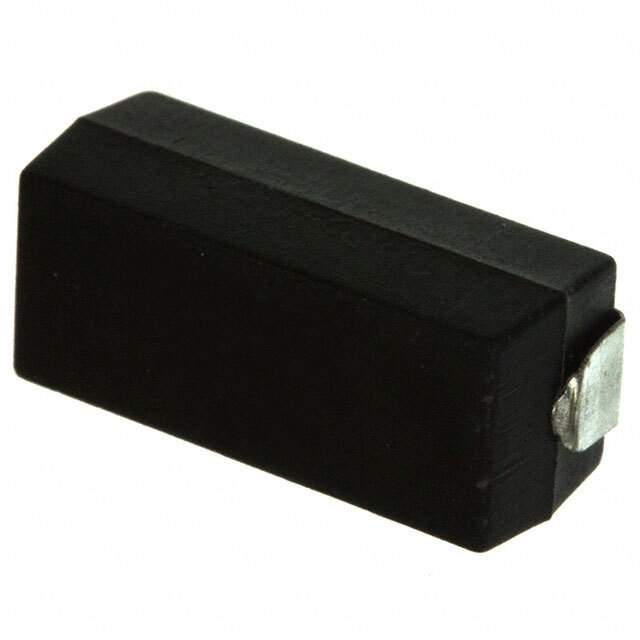

S3-680RF1 Real Image
Same model may have multiple batches, images only for reference.

S3-680RF1

Part No S3-680RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 680 OHM 1% 3W 6327 / 680 Ohms ±1% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S3-680RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 680 Ohms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S-3 680 OHM 1%,S-3-680FCT,S-3-680FCT,S-3-680FDKR,S-3-680FTR,696-1234-1,696-1234-2,S-3-680FTR,696-1234-6,S3680OHM1,S-3-680FDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237200-S3-680RF1
Ultra Librarian 3D Model Ultra Librarian S3-680RF1 CAD Model

Description

The Riedon S-3-680FCT is a wirewound chip resistor with a resistance of 680 Ohms and a power rating of 3W.

  • Resistance: 680 Ohms
  • Power Rating: 3W
  • Package: 6327 J-Lead
  • Package: Tape and Reel
  • Features: Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
  • Height - Seated (Max): 0.268 inches
  • Tolerance: ±1%
  • Temperature Range: -55°C to 275°C
  • Temperature Coefficient: ±20ppm/°C
  • Manufacturer: Riedon
