Same model may have multiple batches, images only for reference.

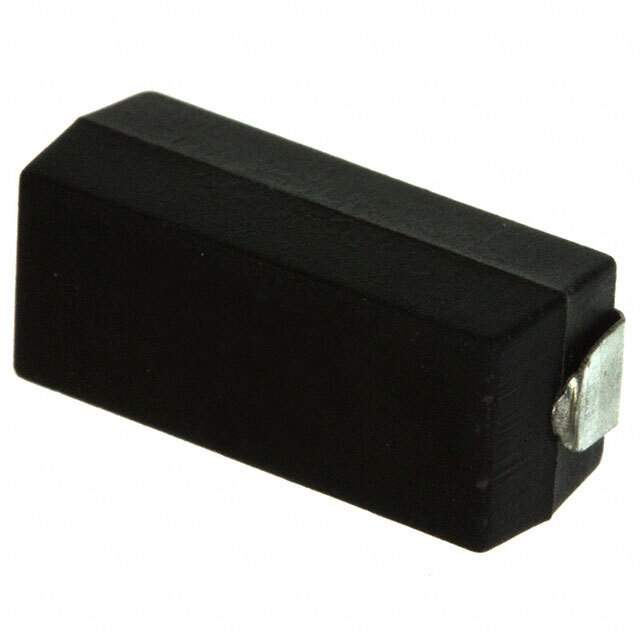

S3-2K2F1 Real Image
Same model may have multiple batches, images only for reference.

S3-2K2F1

Part No S3-2K2F1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.2K OHM 1% 3W 6327 / 2.2 kOhms ±1% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S3-2K2F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 2.2 kOhms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names 696-1227-6,S-3-2200FDKR,S-3 2200 OHM 1%,S-3-2200FCT,S-3-2200FTR,S-3-2200FTR,S32200OHM1,S-3-2200FCT,696-1227-1,S-3-2200FDKR,696-1227-2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237184-S3-2K2F1
Ultra Librarian 3D Model Ultra Librarian S3-2K2F1 CAD Model

Description

The Riedon electronic component is a high-quality product that is perfect for a variety of applications.

  • Component Type: wirewound resistor
  • Resistance: 2.2 kOhms
  • Power: 3W
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Package: tape & reel
  • Package/Case: J-lead
  • Manufacturer: Riedon
  • Win Source Part Number: 1237184-S3-2K2F1
