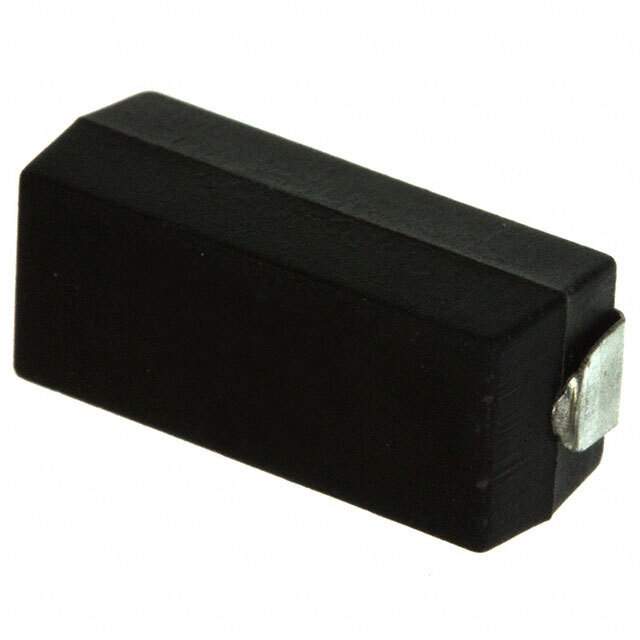

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 20 mOhms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S-3-0.020FTR,S30R02F2,S-3-0.020FTR,S-3-0.020FCT,S-3-0.020FCT,S-3 0.020 OHM 1%,S-3-0.020FDKR,S-3-0.020FDKR,S3-0R02F2TR,S3-0R02F2DKR,S3-0R02F2CT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237183-S3-0R02F2
Ultra Librarian 3D Model Ultra Librarian S3-0R02F2 CAD Model

Description

The Riedon 1237183-S3-0R02F2 is a wirewound chip resistor that belongs to the S series and has a resistance of 20 mOhms.

  • Resistance: 20 mOhms
  • Series: S series
  • Mounting Type: Surface Mount
  • Package / Case: 6327 J-Lead
  • Power Rating: 3W
  • Tolerance: ±1%
  • Features: Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
  • Package: Tape and Reel
  • Standard Package: 500
  • Height - Seated (Max): 0.268 inches
  • Temperature Range: -55°C to 275°C
  • Manufacturer: Riedon
