Same model may have multiple batches, images only for reference.

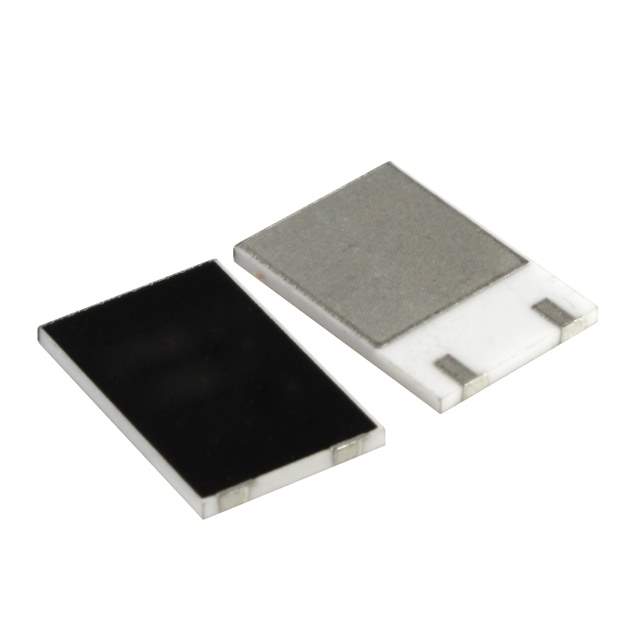

PFC10-200RF1 Real Image
Same model may have multiple batches, images only for reference.

PFC10-200RF1

Part No PFC10-200RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 200 OHM 1% 25W PFC10 / 200 Ohms ±1% 25W Chip Resistor PFC10 (TO-126 SMT) Current Sense, Pulse Withstanding Thick Film
Datasheet
PFC10-200RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series PFC
Package Tape & Reel
Resistance 200 Ohms
Tolerance ±1%
Power (Watts) 25W
Composition Thick Film
Features Current Sense, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case PFC10 (TO-126 SMT)
Supplier Device Package PFC10
Dimension 0.472" L x 0.323" W (12.00mm x 8.20mm)
Height - Seated (Max) 0.041" (1.05mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 696-1412-2,696-1412-1,PFC10-200RF1DKR,696-1412-6,PFC10-200RF1CT-ND,PFC10-200RF1DKR-ND,PFC10-200RF1TR-ND,PFC10-200RF1CT,PFC10-200RF1TR,PFC10200RF1
Standard Package 500
Win Source Part Number 1151074-PFC10-200RF1
Ultra Librarian 3D Model Ultra Librarian PFC10-200RF1 CAD Model

Description

The Riedon PFC10-200RF1 is a chip resistor that has a power rating of 25W and a resistance of 200 Ohms.

  • Manufacturer: Riedon
  • Power Rating: 25W
  • Resistance: 200 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Package/Case: PFC10 (TO-126 SMT)
  • Supplier Device Package: PFC10
  • Height: 0.041" (1.05mm)
  • Dimension: 0.472" L x 0.323" W (12.00mm x 8.20mm)
  • Composition: Thick film
  • Features: Pulse-withstanding
  • Failure Rate: Not applicable
