Same model may have multiple batches, images only for reference.

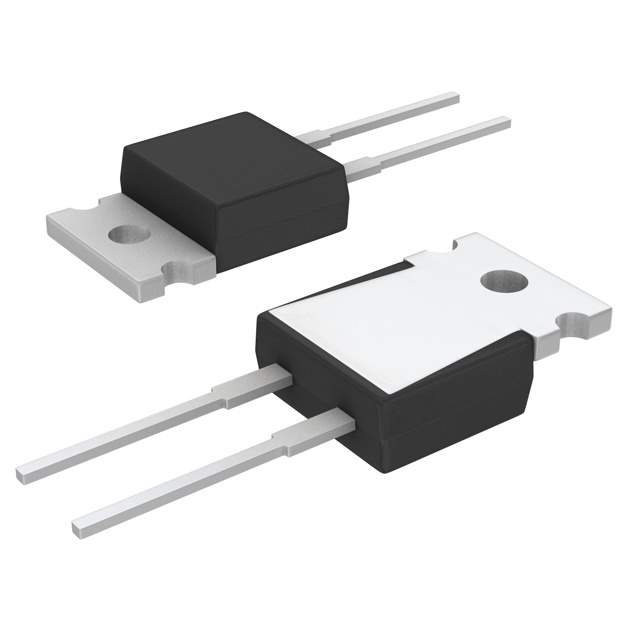

PF2205-15KF1 Real Image
Same model may have multiple batches, images only for reference.

PF2205-15KF1

Part No PF2205-15KF1
Manufacturer Riedon
Catalog Through Hole Resistors
Description RES 15K OHM 1% 50W TO220 / 15 kOhms ±1% 50W Through Hole Resistor TO-220-2 Current Sense, Flame Proof, Pulse Withstanding, Safety Thin Film
Datasheet
PF2205-15KF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Riedon
Series PF2200
Package Tube
Resistance 15 kOhms
Tolerance ±1%
Power (Watts) 50W
Composition Thin Film
Features Current Sense, Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case TO-220-2
Supplier Device Package TO-220
Size / Dimension 0.417" L x 0.177" W (10.60mm x 4.50mm)
Height - Seated (Max) 0.591" (15.00mm)
Number of Terminations 2
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.29.0000
California Prop 65 Warning Information
Win Source Part Number 1341117-PF2205-15KF1
Ultra Librarian 3D Model Ultra Librarian PF2205-15KF1 CAD Model

Description

The PF2200 resistor from Riedon is a through-hole resistor designed for use in current sensing applications.

  • Power (Watts): 50W
  • Resistance: 15 kOhms
  • Tolerance: ±1%
  • Packaging: Tube
  • Size / Dimension: 0.417" L x 0.177" W (10.60mm x 4.50mm)
  • Max Height - Seated (Max): 0.591" (15.00mm)
  • Package / Case: TO-220-2
  • Package: TO-220
  • Operating Temperature: -55°C ~ 155°C
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • California Prop 65 Warning: Available
